Lighting

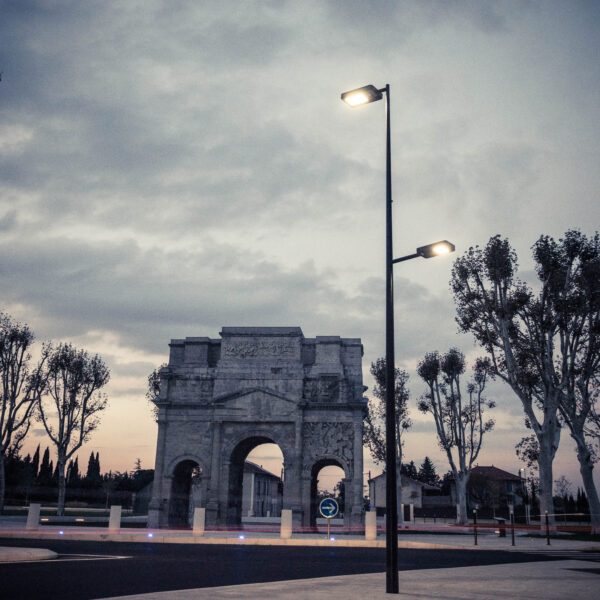

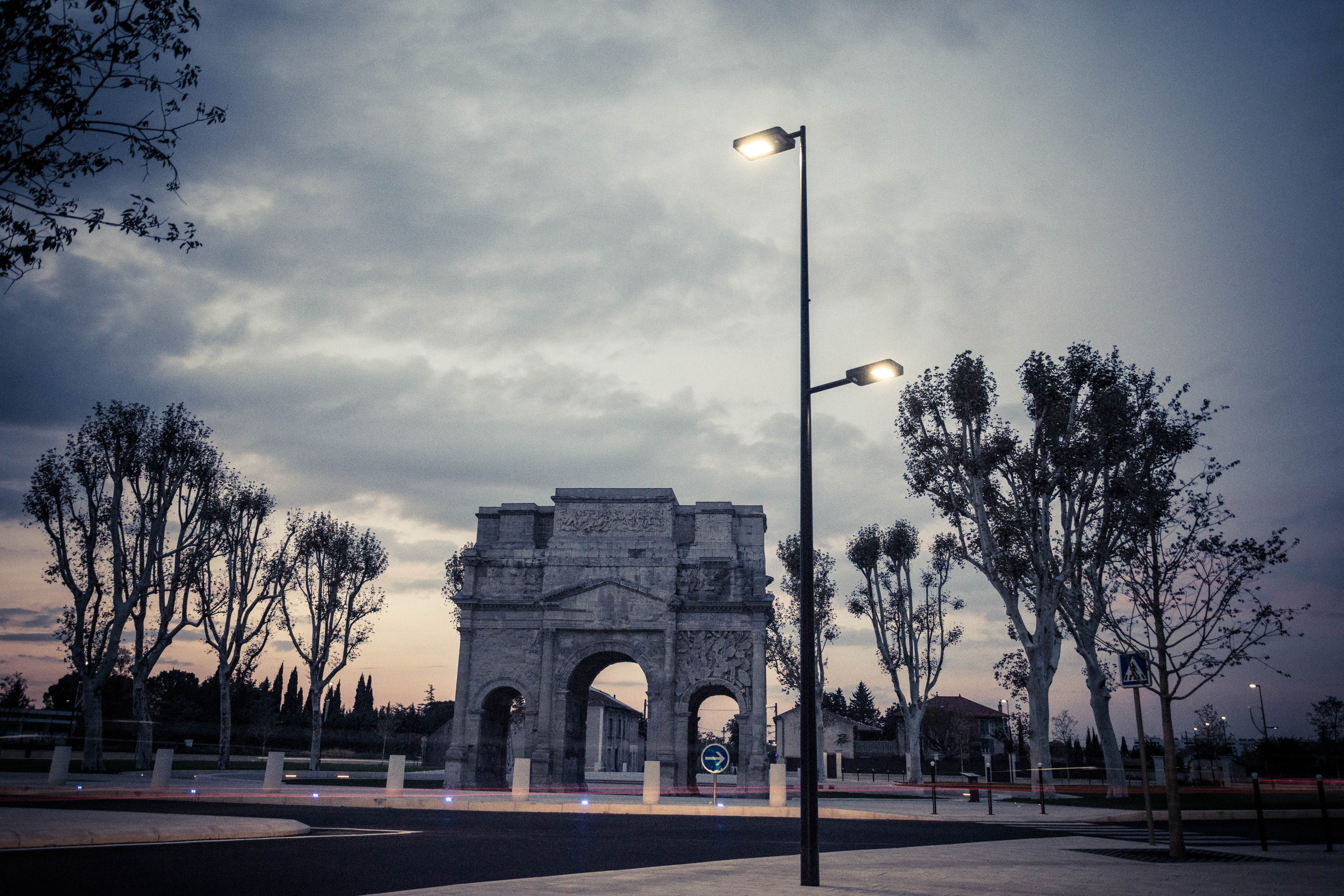

PIXEL LED

design by STOA Architecture

The raw material of lighting is light.
During the day, it is natural; it must be manufactured at night... the only reason for “lighting equipment” in a town: making light!

The PIXEL BY ECLATEC range offers:

• a perfectly discrete sober and elegant design; so that during the day the design disappears into the surrounding vista;
• a wide choice of high quality luminaires suitable for various urban situations so that, during the night, the light emphasises the town;
• a technology that is economical in manufacturing, consumption and maintenance; to last a long time in the town, during the day as well as the night.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Main roads

Main roads

Icon Residence areas

Residence areas

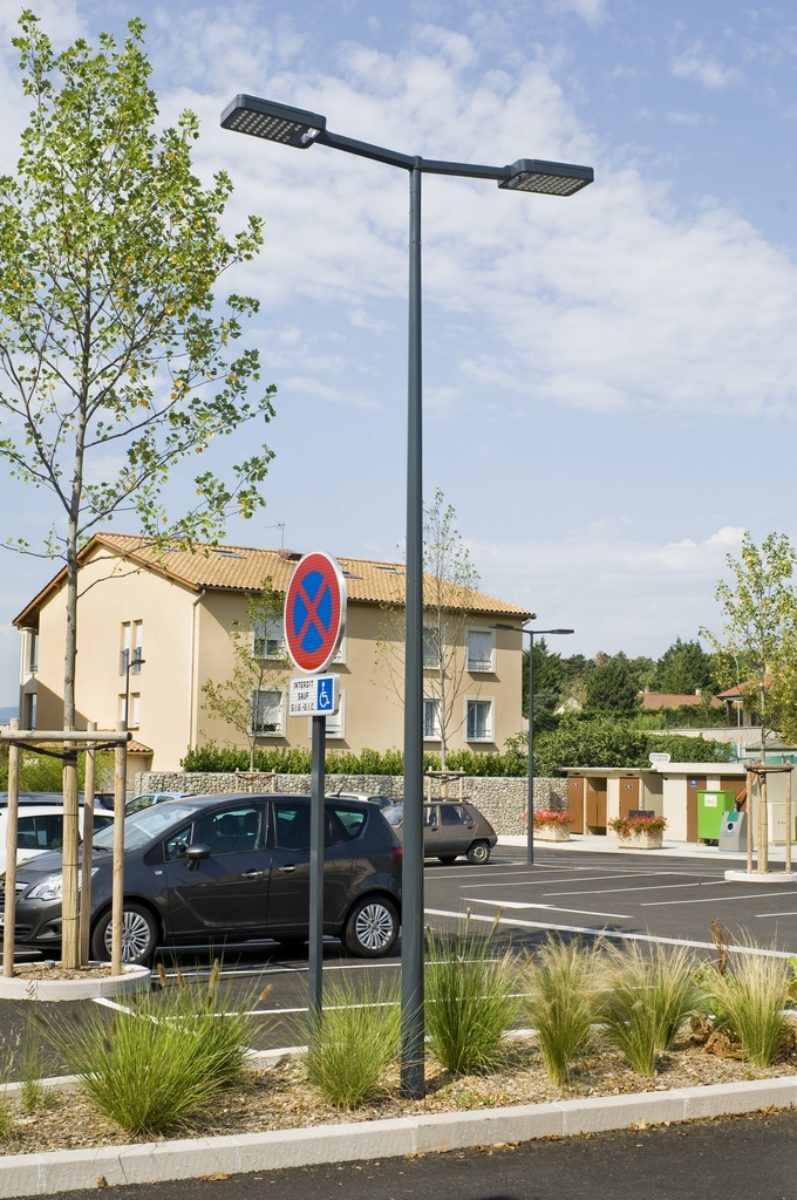

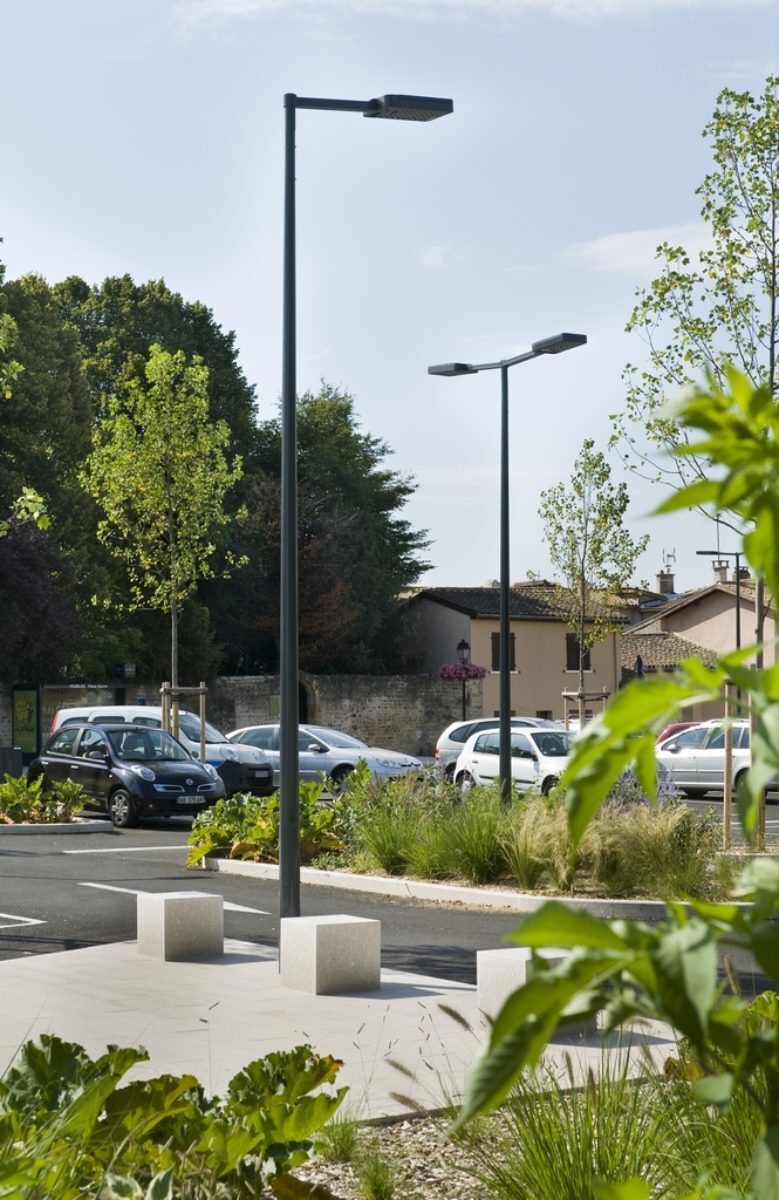

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: Top, bitop, side entry
• Pixel 1: Urban routes, pedestrian walkways, cycle paths and residential lighting.
• Pixel 2: Roads, secondary urban and inter-urban streets
• Recommended heights:
- Pixel 1: 4 to 6 m
- Pixel 2: 6 to 10 m

DESCRIPTION

• Luminaire available in 2 sizes: PIXEL 1 and PIXEL 2
• Body and frame in injected die-cast aluminium
• Silkscreen printed, thermally toughened flat glass
• Luminaire opens without tools
• Luminaire fixation top or lateral
• Polyester powder coating, any colour available
• IP 66
• IK 09
• Standard BLS LED strips equipped with QUADRALENS lenses
• Colour temperature:
2400 K, 2700 K, 3000 K or 4000 K
• Class I or II
• Luminaire pre-wired in the factory (6 m)

CITIZEN REFERENCE POINTS

• Materials used:
- Pixel 1: Aluminium 63%, Other 22%, Glass 9%, Steel 5%, Plastic 1%
- Pixel 2: Aluminium 65%, Other 19%, Glass 11%, Steel 4%, Plastic 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

  • Top fixation, male fastening for pole Ø 60 - 62 mm Penetration of 100 mm onto the pole
    For pole Ø 76 mm top, optional spigot A
    Luminaire tilted at 7°
  • L: Side entry coupled with sleeve for tube (Ø 60 mm exterior)
  • L: side entry for rectangular tube (50x70 mm)
  • Pathway bracket with fastening plate
  • Wall-mounted bracket

DIMENSIONS

PIXEL 1: Length: 498mm Width: 296mm Height: 79mm
Weight: 9kg
Scx: 0,06m2

PIXEL 2: Length: 647mm Width: 384mm Height: 79mm
Weight: 12,5kg
Scx: 0,08m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
