LINK

design by Eclatec

The LINK pedestrian luminaire creates an elegant link between function and form.

By night, it does its job very effectively, giving pedestrians an indispensable sense of safety. In that function, it also allows a very wide range of possibilities by adding a personalized touch to the urban atmosphere. By day, its clean design tones easily with diverse cityscapes.

The LINK lives up to its name by creating a resolutely contemporary link between night and day.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

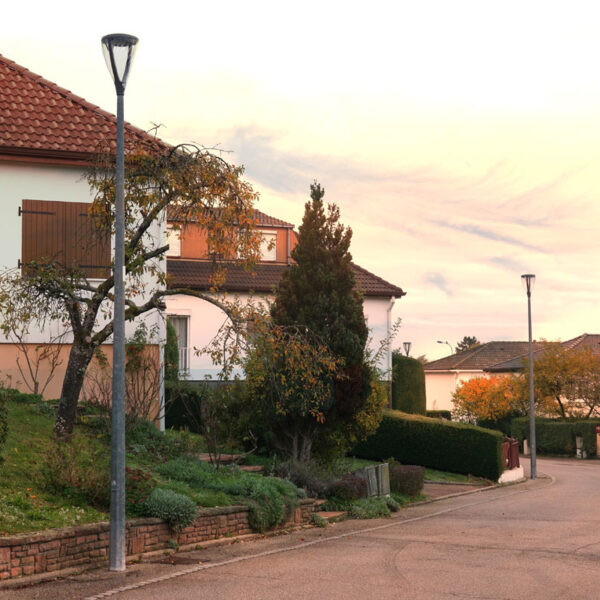

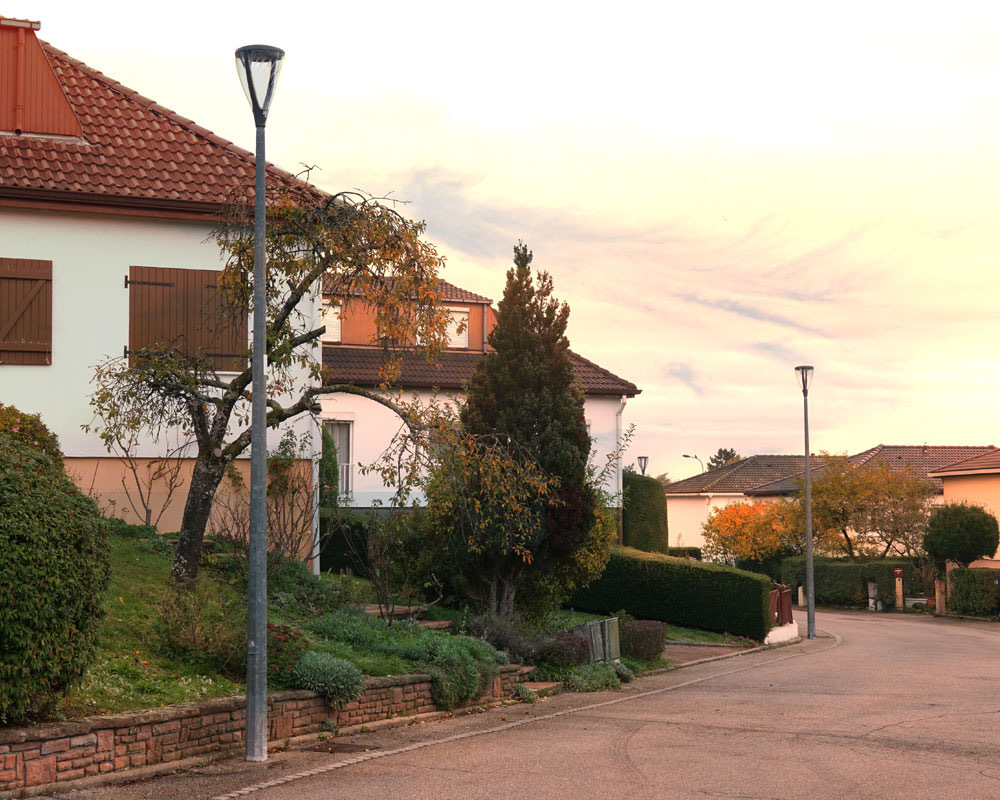

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: top

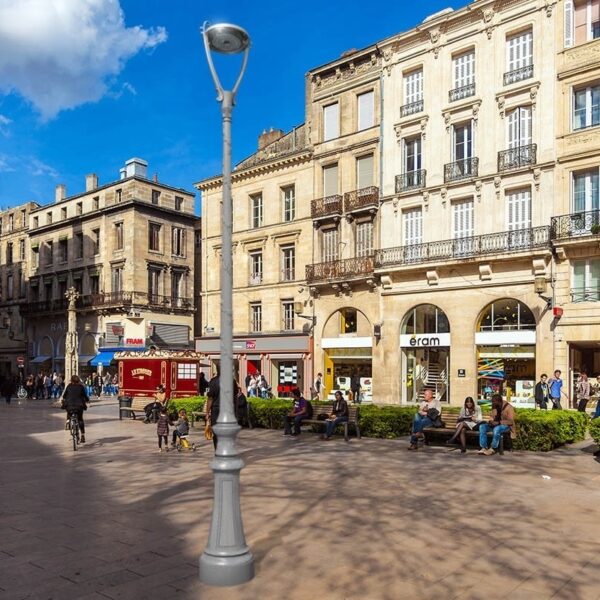

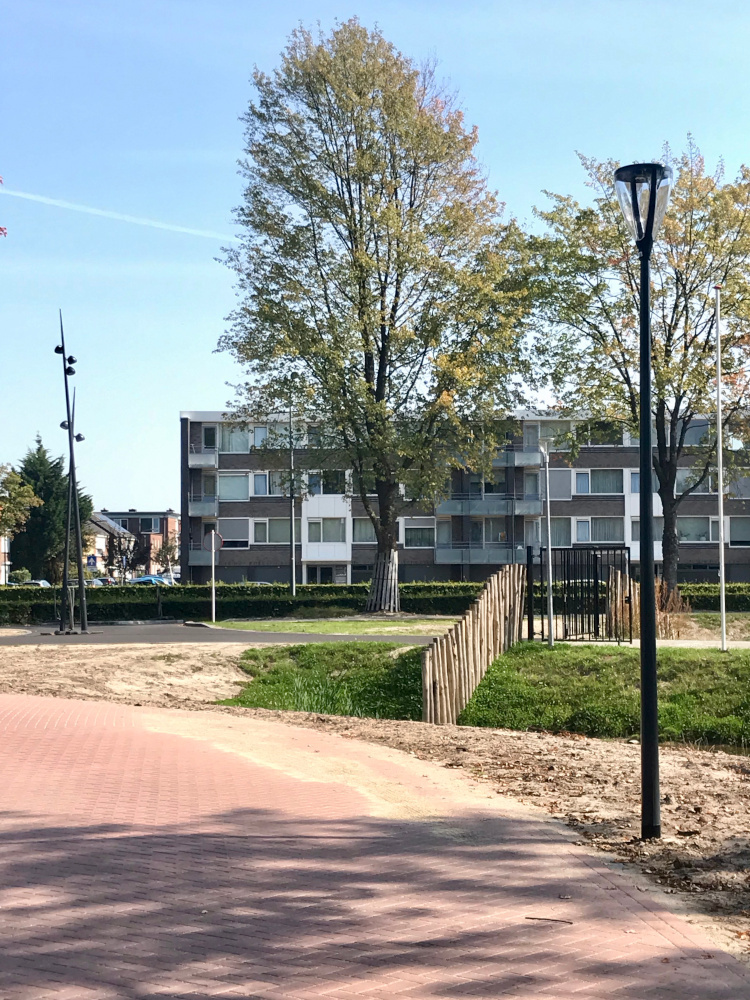

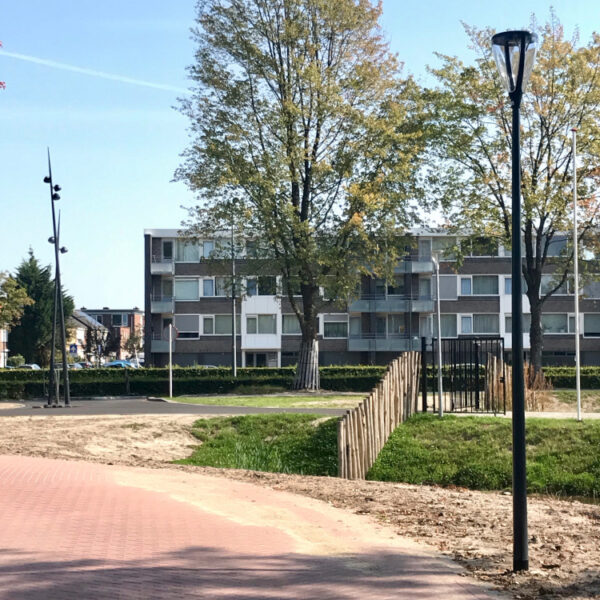

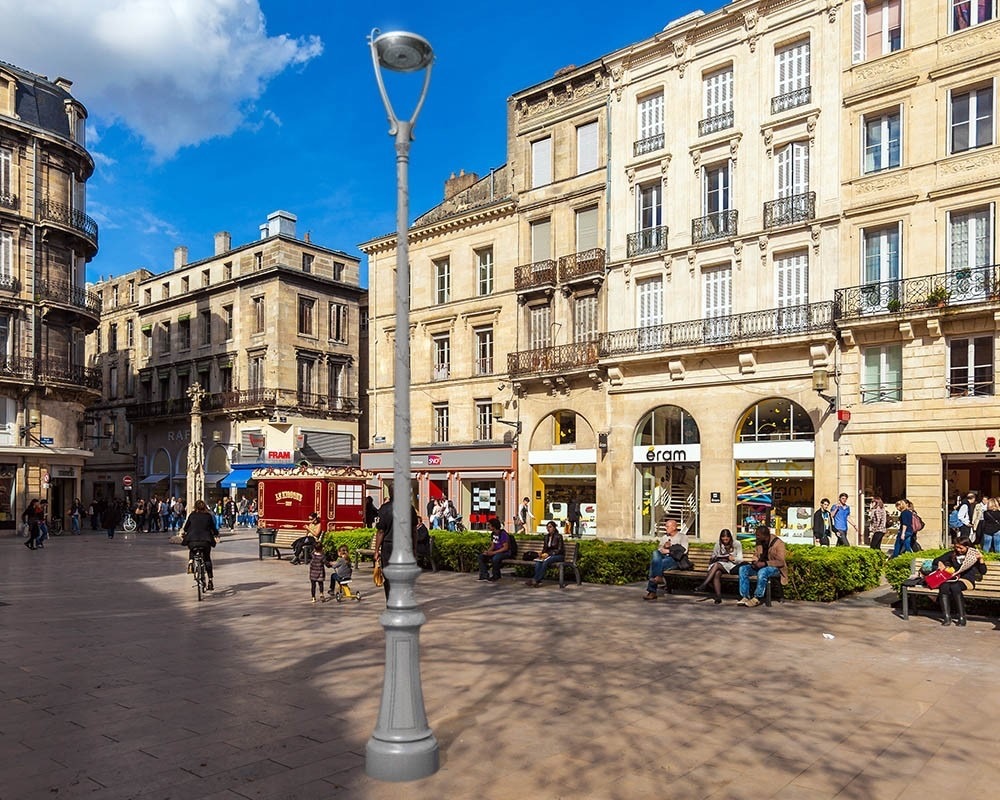

• Carparks, parks and gardens, pedestrian paths, cycle paths.
• Recommended heights: 3,5 to 5 m

DESCRIPTION

• Base, cover and arm in injected die-cast aluminium
• Four polycarbonate bowls:
- deep clear, deep structured, shallow clear and shallow opaline
• Single Aluminium Grey polyester powder coating finish
• IP 66
• IK 10 - 50 joules
• Class I or II
• 2 types of sources:
- LINK source (ORALED type) equipped with an ORALENS mono lens
- Standard BLS LED strips equipped with QUADRALENS lenses
• Colour temperature: 2200, 2400, 2700, 3000 and 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
Aluminium 64%, Plastic 27%, Steel 6%, Other 3%,
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Top fastening for Ø 60/62 mm poles, fixed with six screws
• Optional for standard Ø 76 mm poles

DIMENSIONS

• Ø 390mm, Height 630mm
• Weight 8,5 kg
• Scx 0,13m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
