APPLICATIONS

APPLICATIONS

• Mounting: finished product

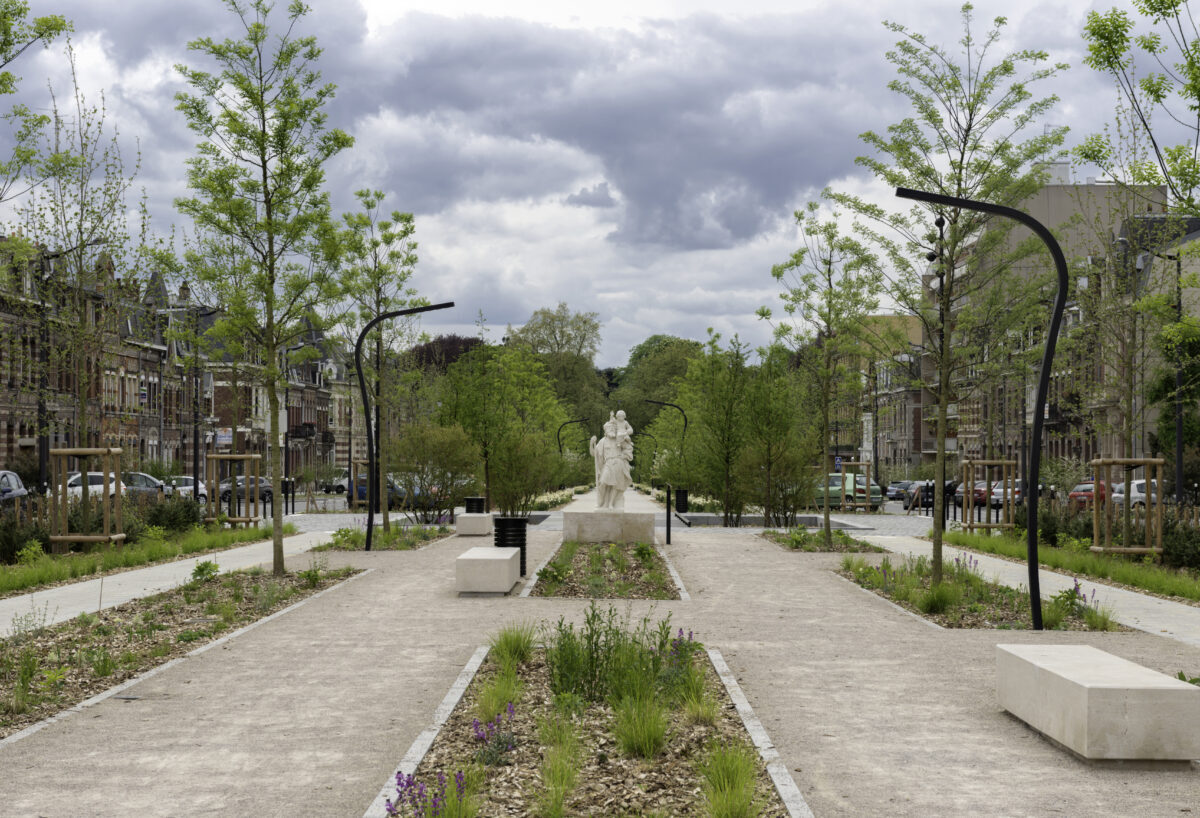

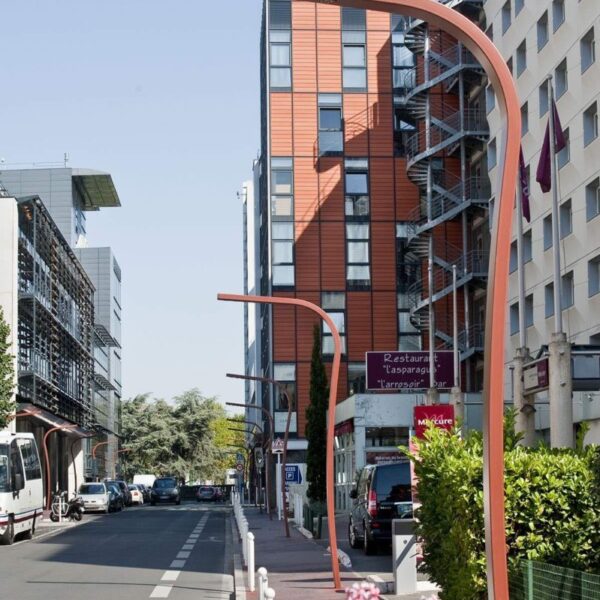

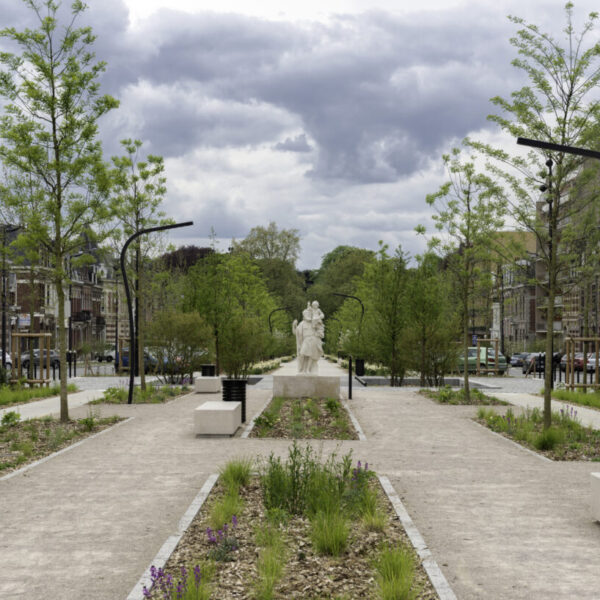

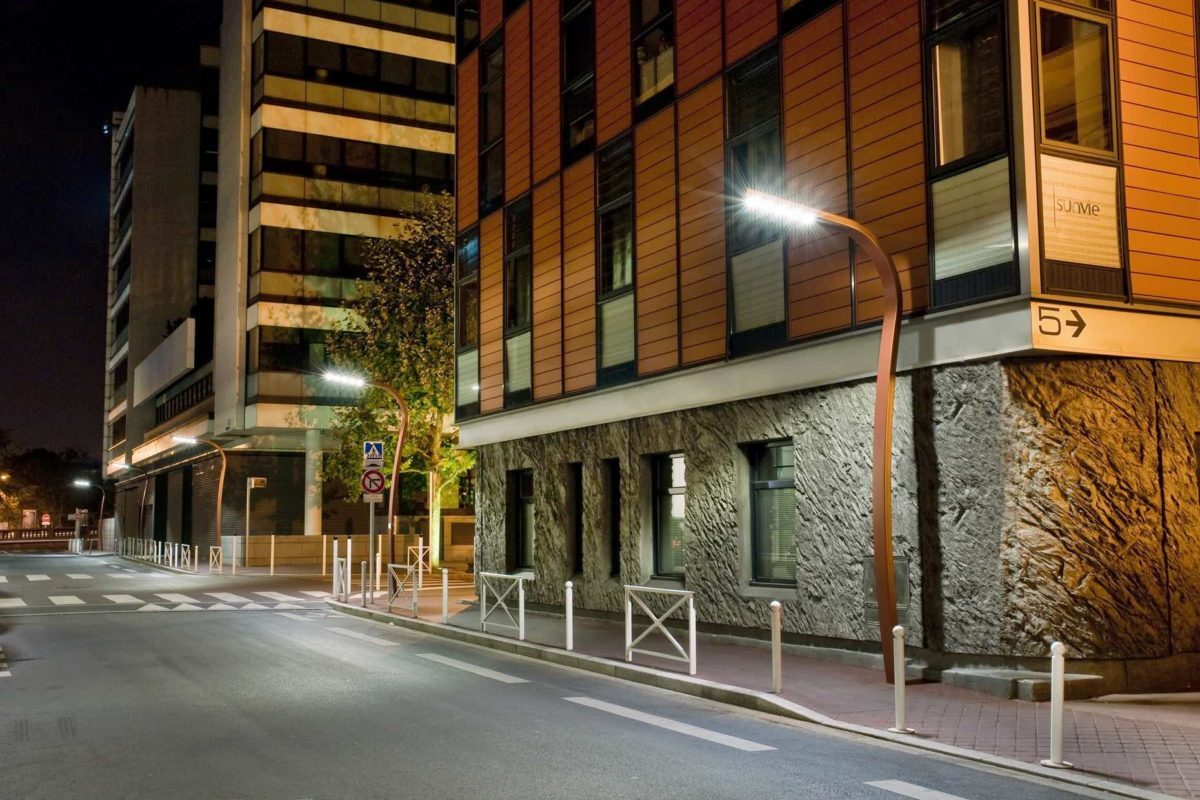

• Car parks, parks and gardens, urban and residential lighting
• Height: 4,5 m

DESCRIPTION

  • Pole/luminaire made of hot dipped galvanised rectangular section steel, bent 6 section 180 x 80 mm
  • Polyester powder coating, any RAL colour available
  • IP 66 modules
  • IK 07
  • Class I or II
  • KIDLED modules with ORALENS mono lense
  • Connection to the network through electrical box inside the pole bottom
  • Colour temperature: 4000 K and 3000 K
  • Pole and luminaire pre-wired in the factory

CITIZEN REFERENCE POINTS

• Materials used: Steel 99%, Other 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Waterproof molded silicone gaskets and connections

MECHANICAL INTERFACES

• Flange place fixing centers 200 x 200 mm
• 4 anchor bolts JT 16/14 x 300 (supplied)

DIMENSIONS

180x80mm Height: 4500mm
Weight: 98kg
Scx: 1,13m2

CONNECTIVITY

0-10V
• DAL
• SR+Zhaga (D4I)
• Bluetooth
