NISMO

design by Michel Tortel

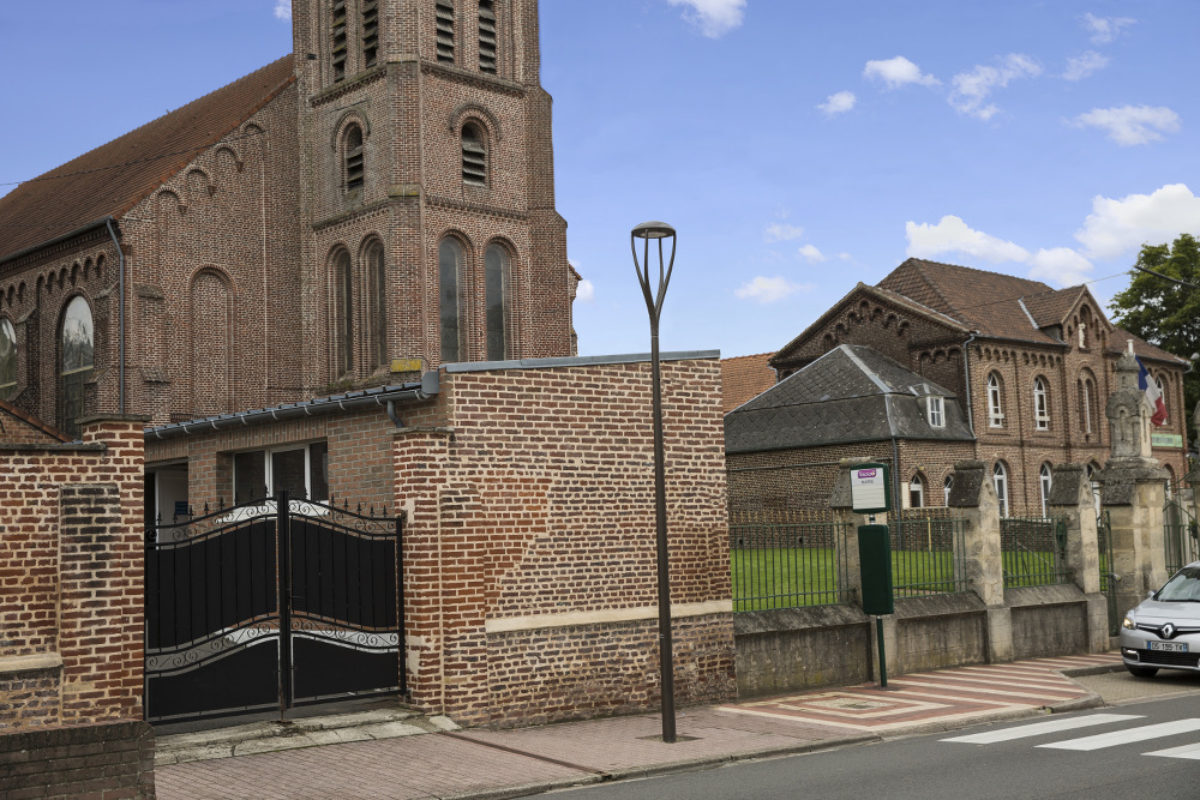

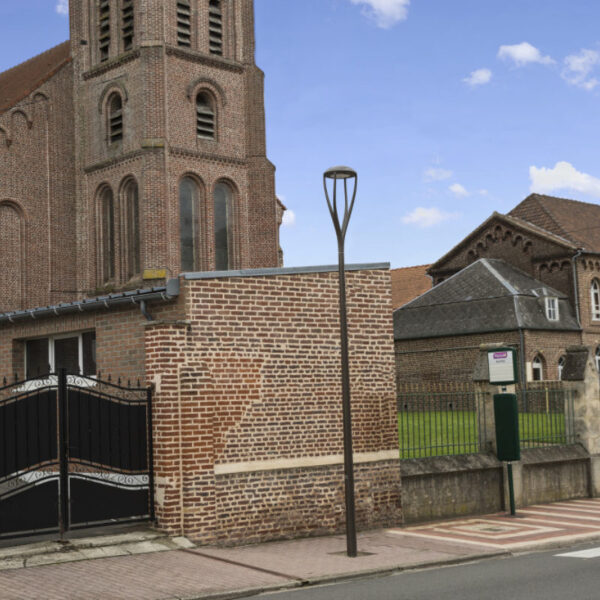

NISMO is a luminaire designed to be urban and decorative.

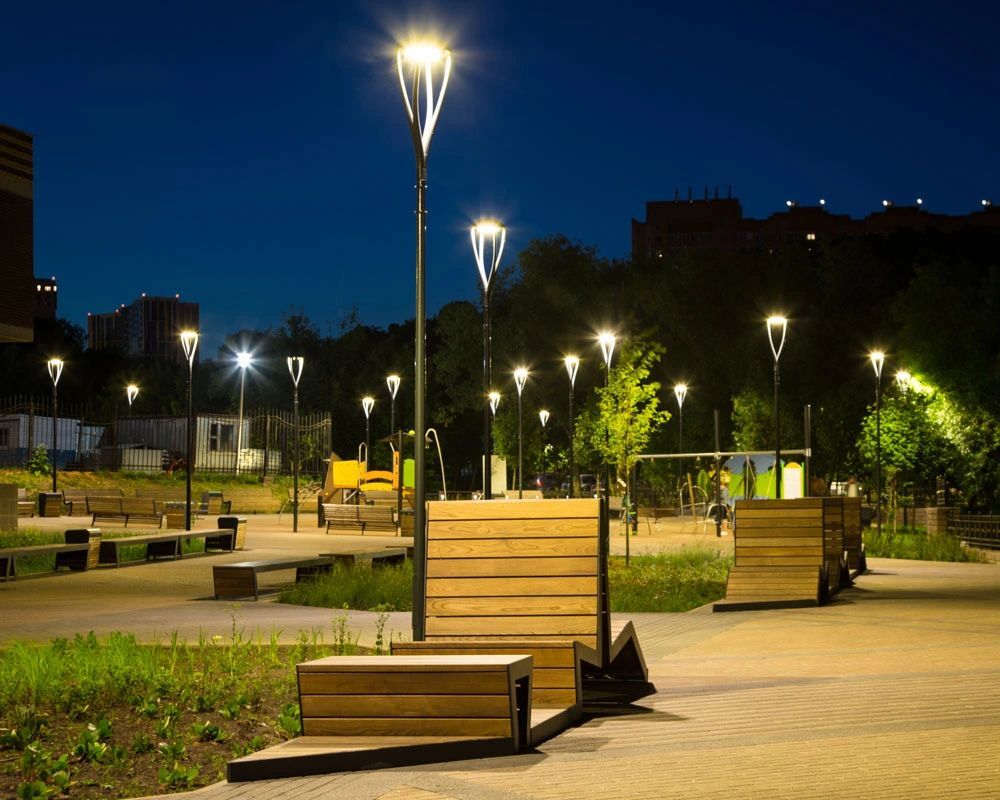

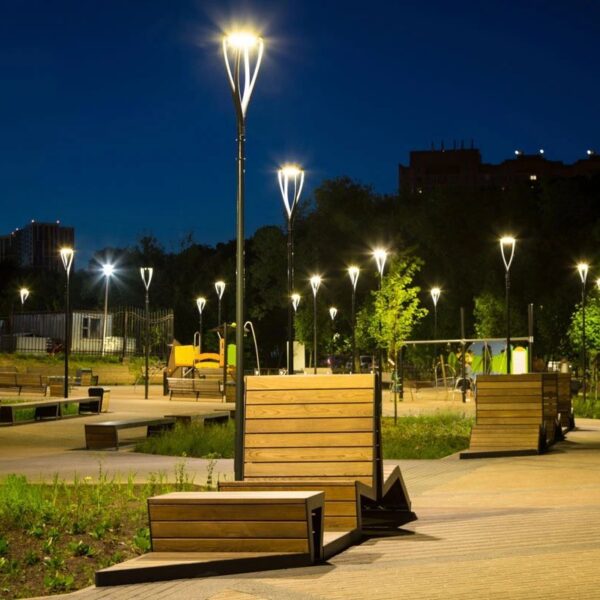

NISMO suggests new types of lighting and silhouette in the urban space. Its design is universal, elegant and innovative. It inscribes the luminaire into an original verticality: the arms become design objects and lose their character of a weighty technical constraint. Their disposition, by night, frees them from an all-too predictable uniformity.

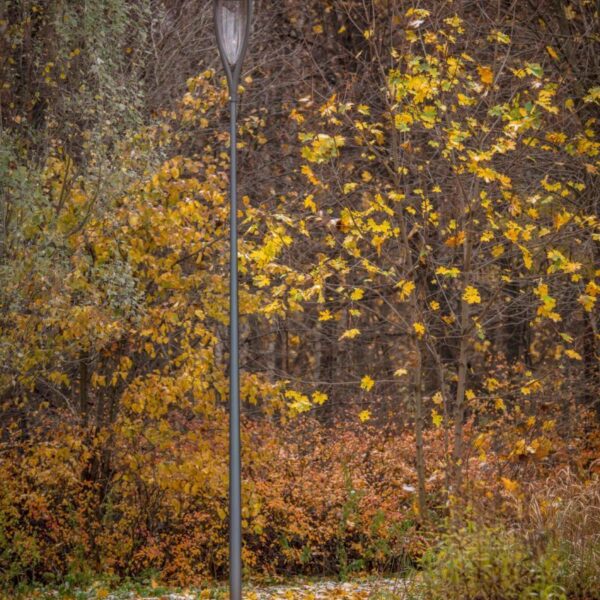

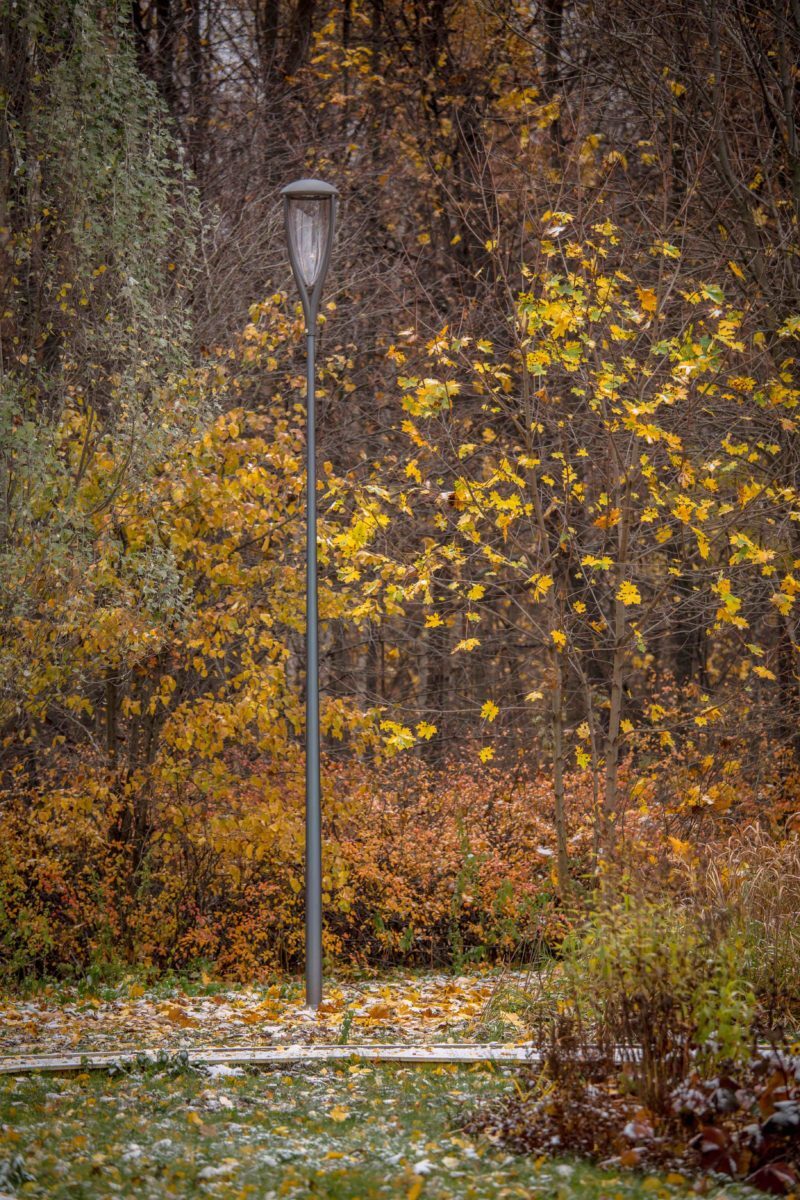

By day, individually envisaged, NISMO also plays with perspective; it questions the inhabitants with its gently symmetrical silhouette.

These innovations in service and usage, useful, visible and realistic, open up a wide range of possibilities for lighting engineers and urban planners.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: Post-top
• Pedestrian areas, cycle paths, residential areas, street lighting
• Recommended heights: 4 to 6 m

DESCRIPTION

• Injection die-cast aluminium body
• Option: deep clear polycarbonate bowl, IK 10
• Polyester powder coating, any colour available
• IP 66
• IK 10
• Class I or II
• Luminaire pre-wired in the factory (6 m)
• NISMO source equipped with an ORALENS mono lense in PMMA
• Colour temperature: 4000 K and 3000 K

CITIZEN REFERENCE POINTS

  • Materials used:
    - with bowl: Aluminium 67%, Plastic 21%, Steel 11%, Other 1%
    - without bowl: Aluminium 82%, Steel 13%, Plastic 3%, Other 2%
  • Complies with the RoHS directive
  • High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Entry sleeve with membrane seal
• Extruded silicone gasket
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Post top fastening pole Ø 60/62 mm
• Post-top fixation for pole Ø 76 mm with a spigot Ø 60 mm L 70 mm For pole Ø 76 mm top, optional spigot C

DIMENSIONS

Ø: 443mm Height: 1132mm
Weight: 15kg
Scx: 0,11 / 0,23m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
