KERIS

design by Eclatec

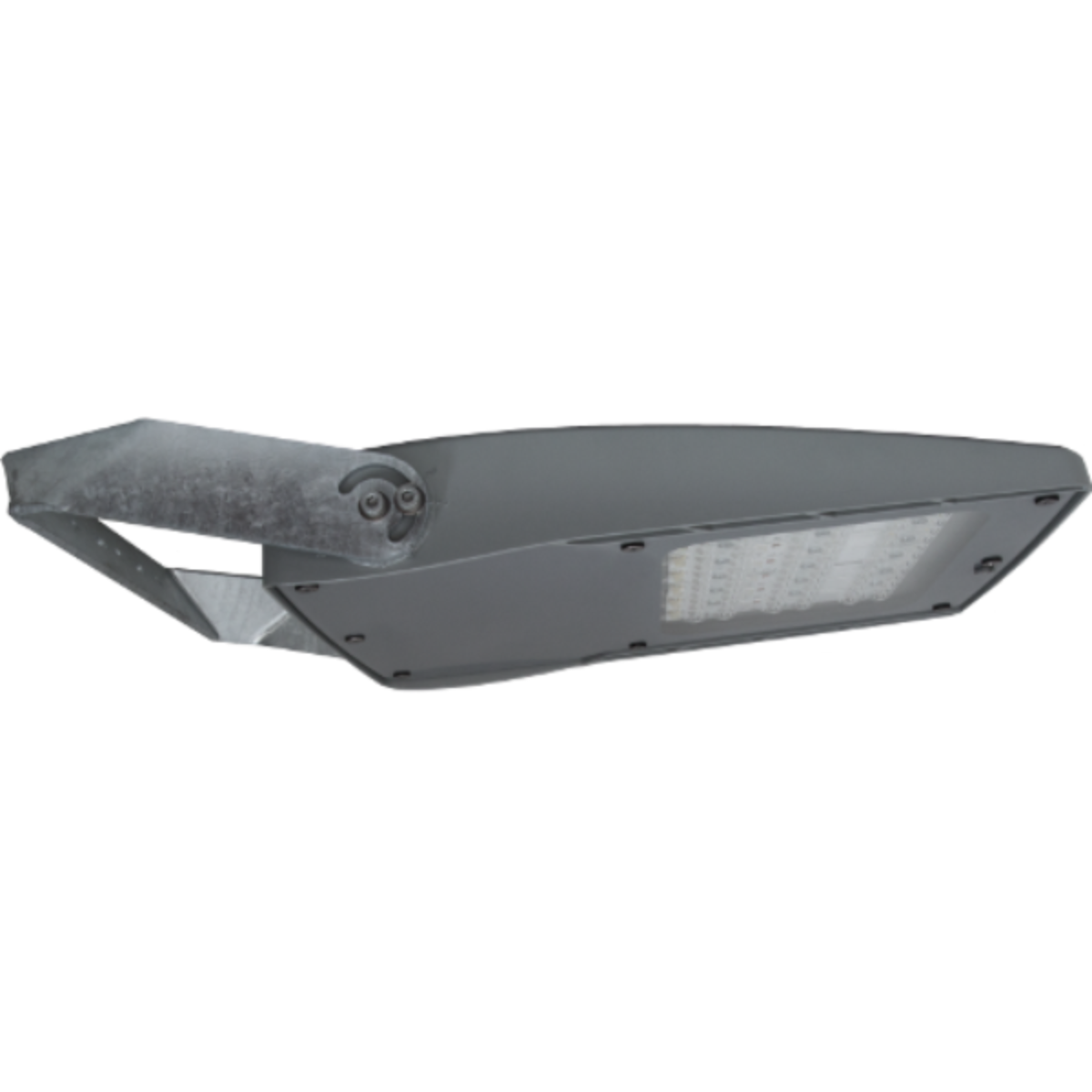

The KERIS floodlights range is the logical outcome of LED technology applied to high- power lighting.

With two basic models and a wide range of outputs and photometric distributions that address the many applications of lighting from very high posts, whether for traffic zones, car parks, working areas or sports facilities...

The two Keris models are characterised by their limited wind surface, making the sizing of their posts and supports more economical. Keris floodlights complement the range with very high posts from Eclatec, offering consistent solutions for posts, racks, walkways and fixed and mobile head frames.

APPLICATIONS

Icon Main roads

Main roads

Icon Terrain lighting

Terrain lighting

Icon Highways

Highways

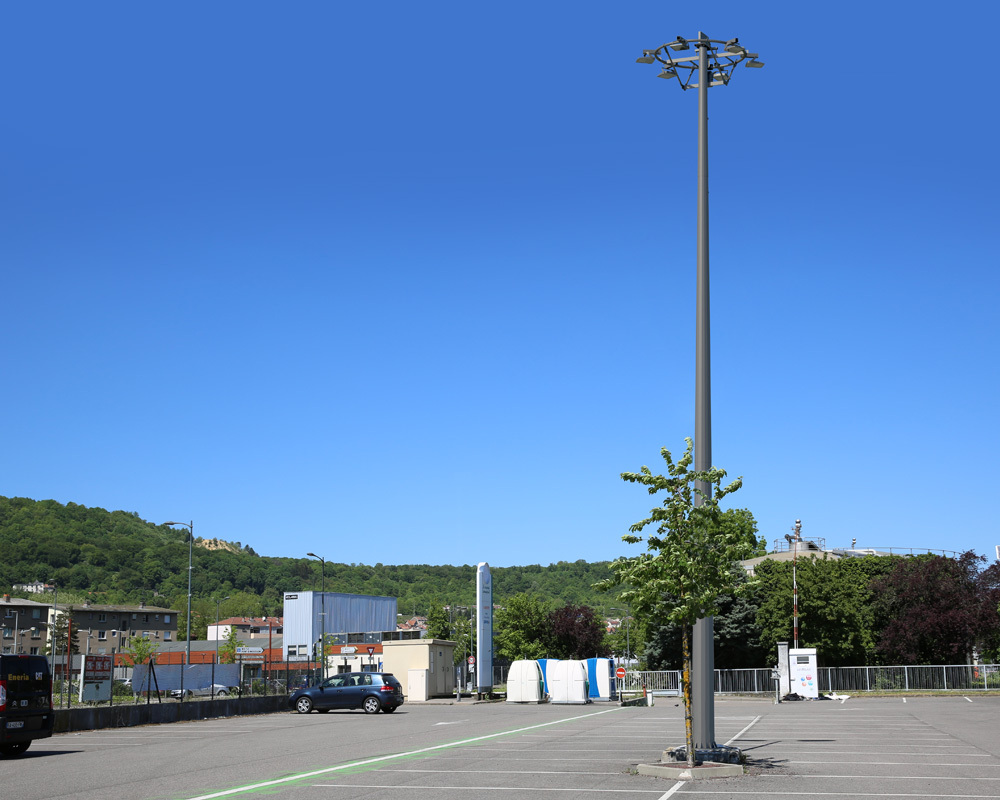

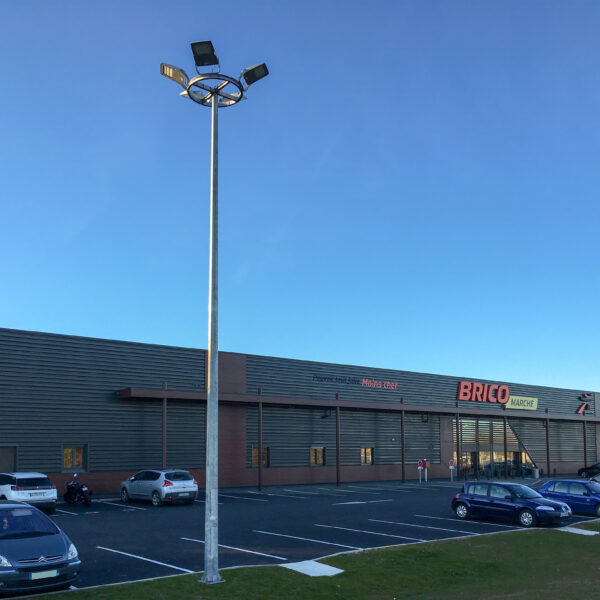

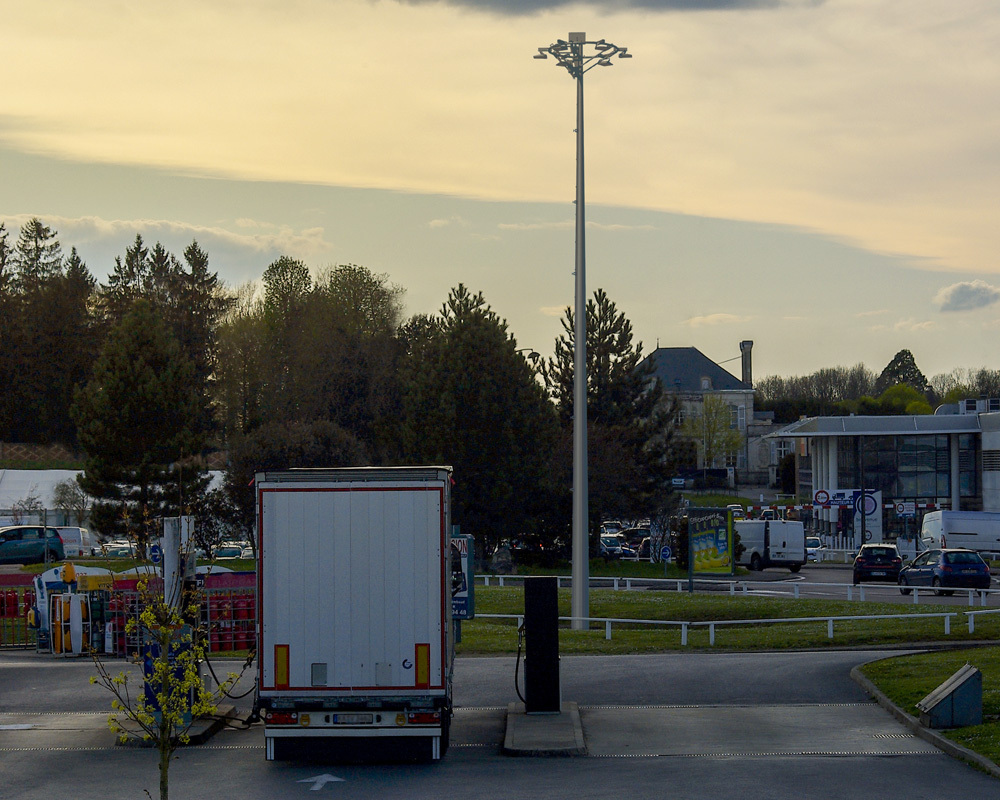

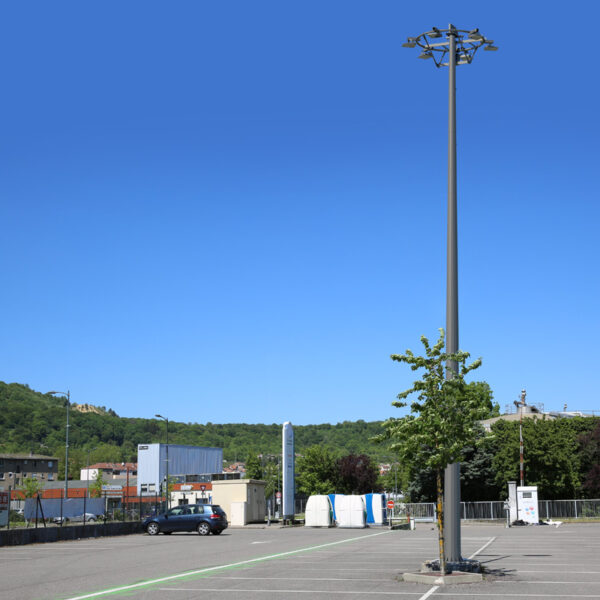

Icon Parking lots

Parking lots

Icon Sports fields

Sports fields

APPLICATIONS

APPLICATIONS

• U bracket, post top or suspended fastening
• Recommended heights:
Keris 2: up to 15 m
Keris 3: up to 30 m
• Streets and secondary roads, car parks, sports grounds (tennis courts, handball courts etc.), industrial facilities and estates, architectural highlighting, pedestrian crossings etc

DESCRIPTION

• Floodlight available in two sizes: Keris 2 and Keris 3
• Body in injected die-cast aluminium
• Polyester powder coating, any colour available
• IP 66
• Standard LED BLS strips with QUADRALENS lenses
• Colour temperature: 2400, 2700, 3000 and 4000 K
• Bowl made in printed thermally toughened glass
• IK 09
• Class I or II

CITIZEN REFERENCE POINTS

• Materials used:
- KERIS 2: Aluminium 37 %, Steel 29 %,Glass 20 %, Other 14 %
- KERIS 3: Aluminium 47 %, Steel 25 %,Glass 14 %, Other 14 %
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Pneumatic silicone gasket
• Cable gland with anchoring device (two per floodlight)
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• U bracket, painted as an option: post top or suspended fastening
• Projector pre-tilted at 2 °

DIMENSIONS

KERIS 2: Length: 489mm Width: 449mm Height:85mm
Weight: 11kg
Scx: 0,04m2

KERIS 3: Length: 659mm Width: 545mm Height:78mm
Weight: 16kg
Scx: 0,07m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
