APPLICATIONS

APPLICATIONS

• Mounting: top, suspended and side entry

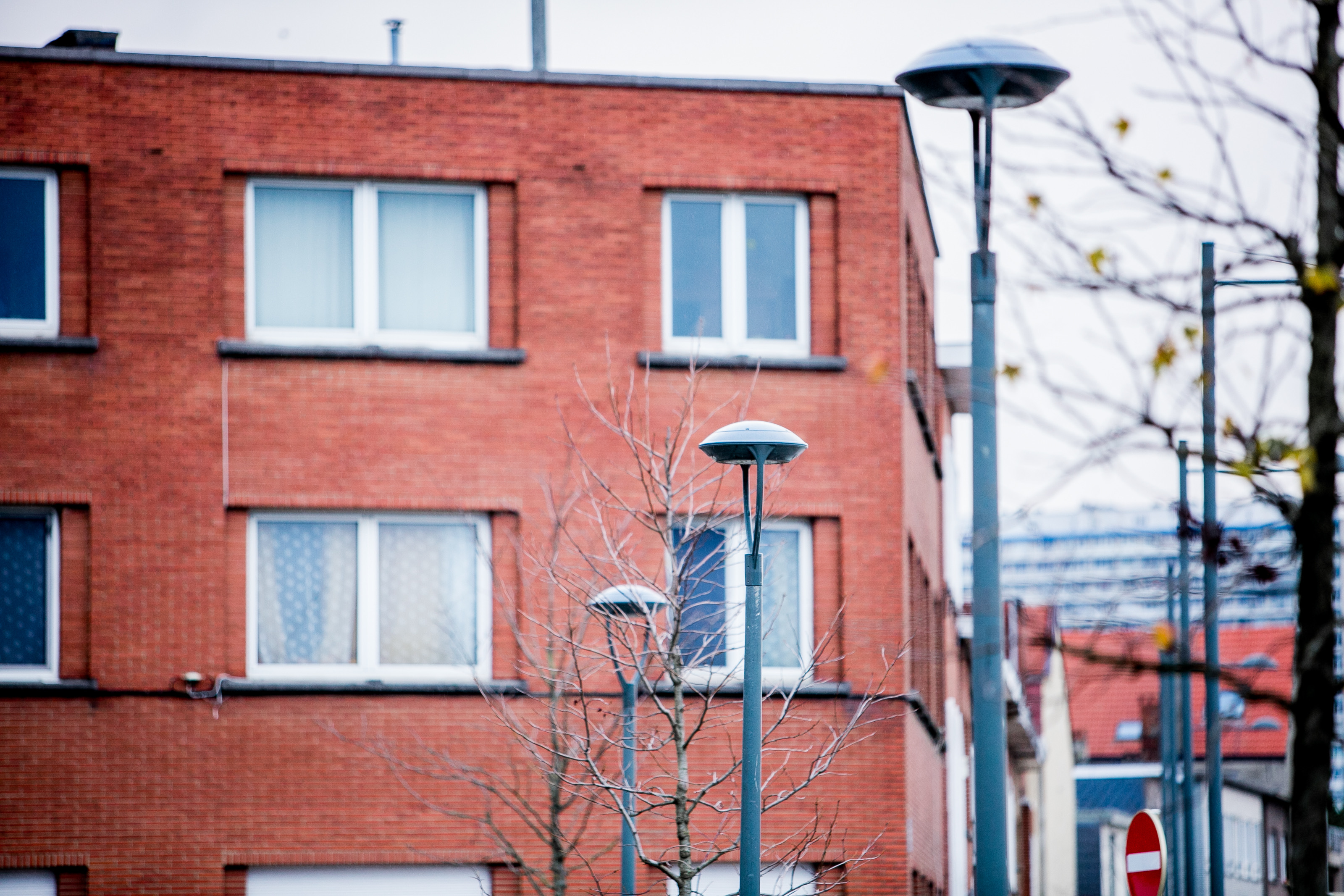

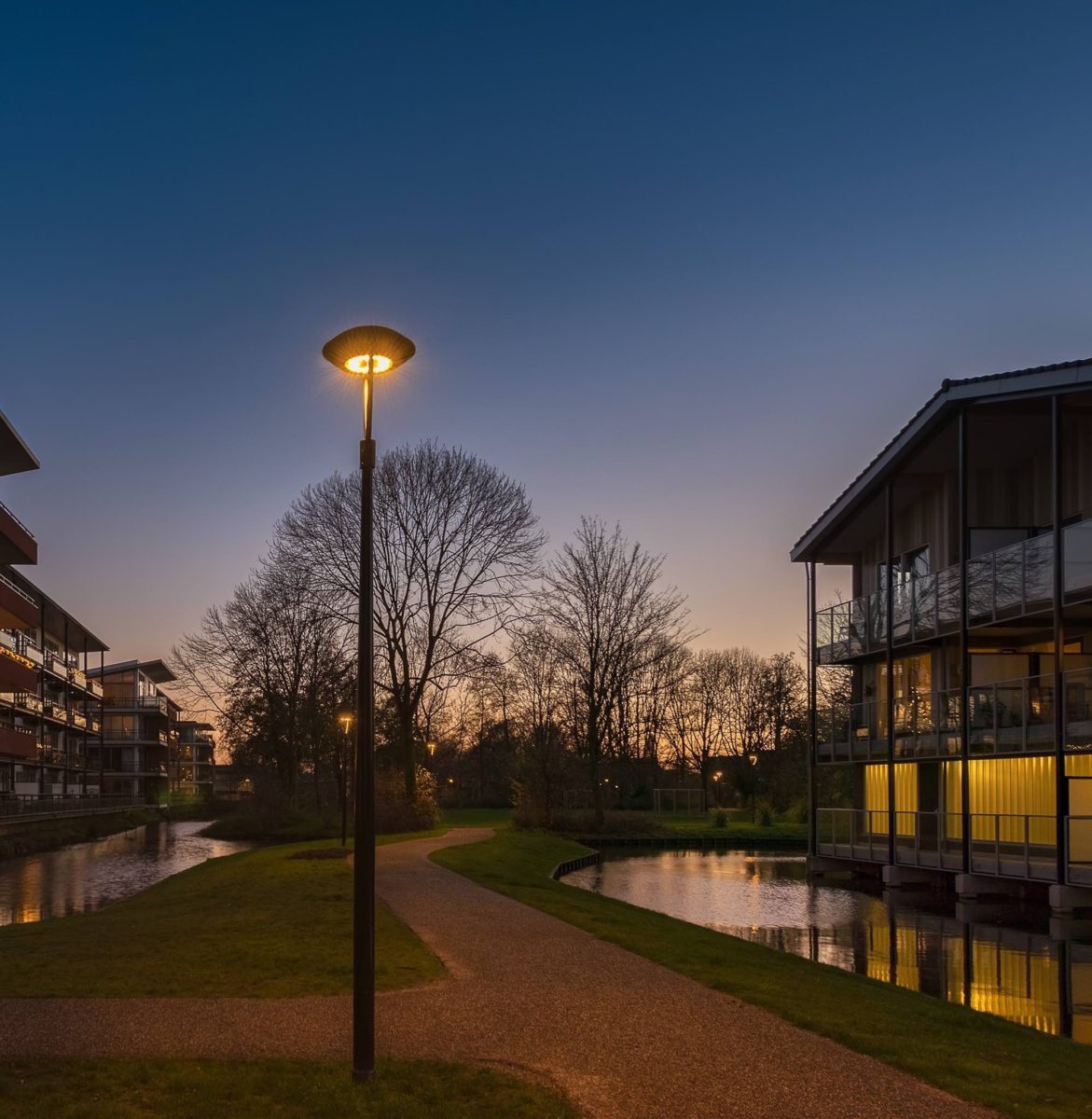

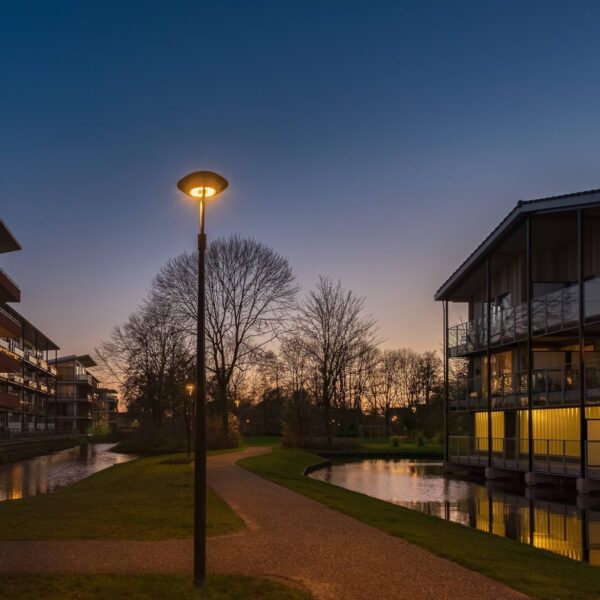

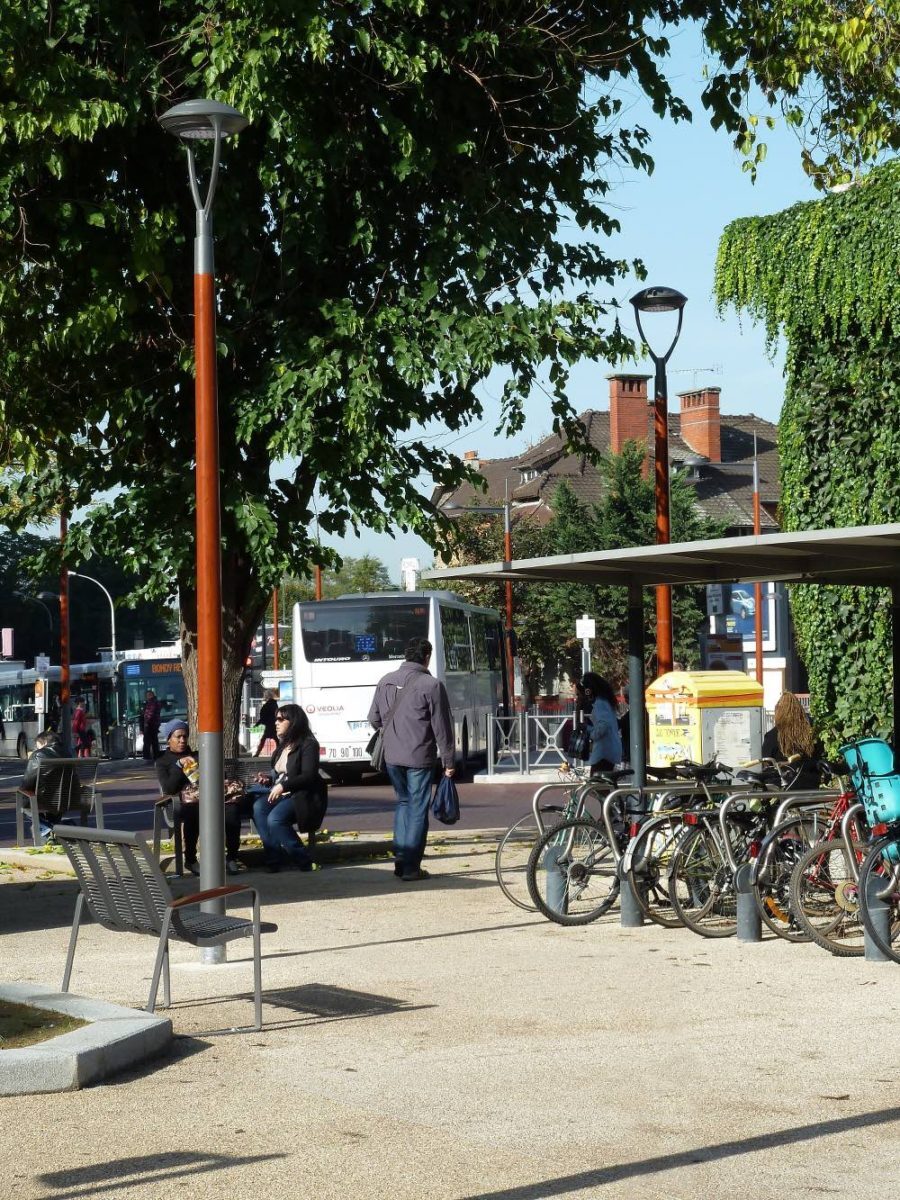

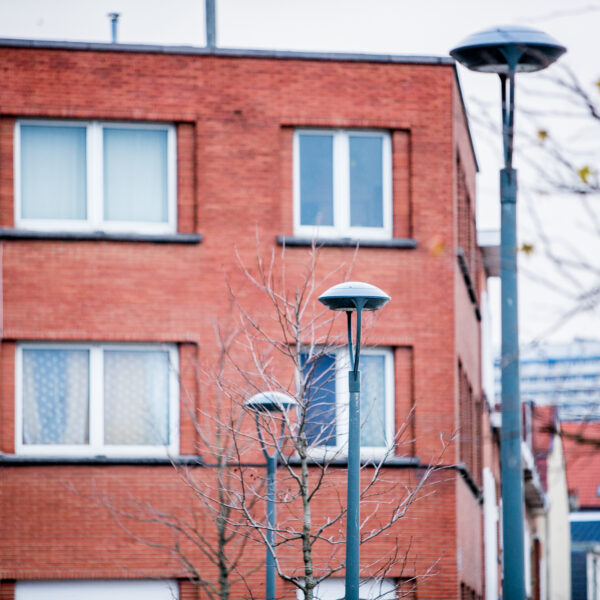

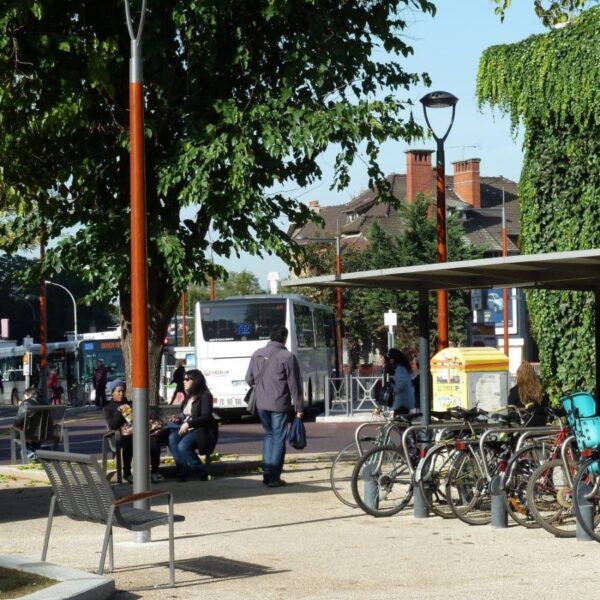

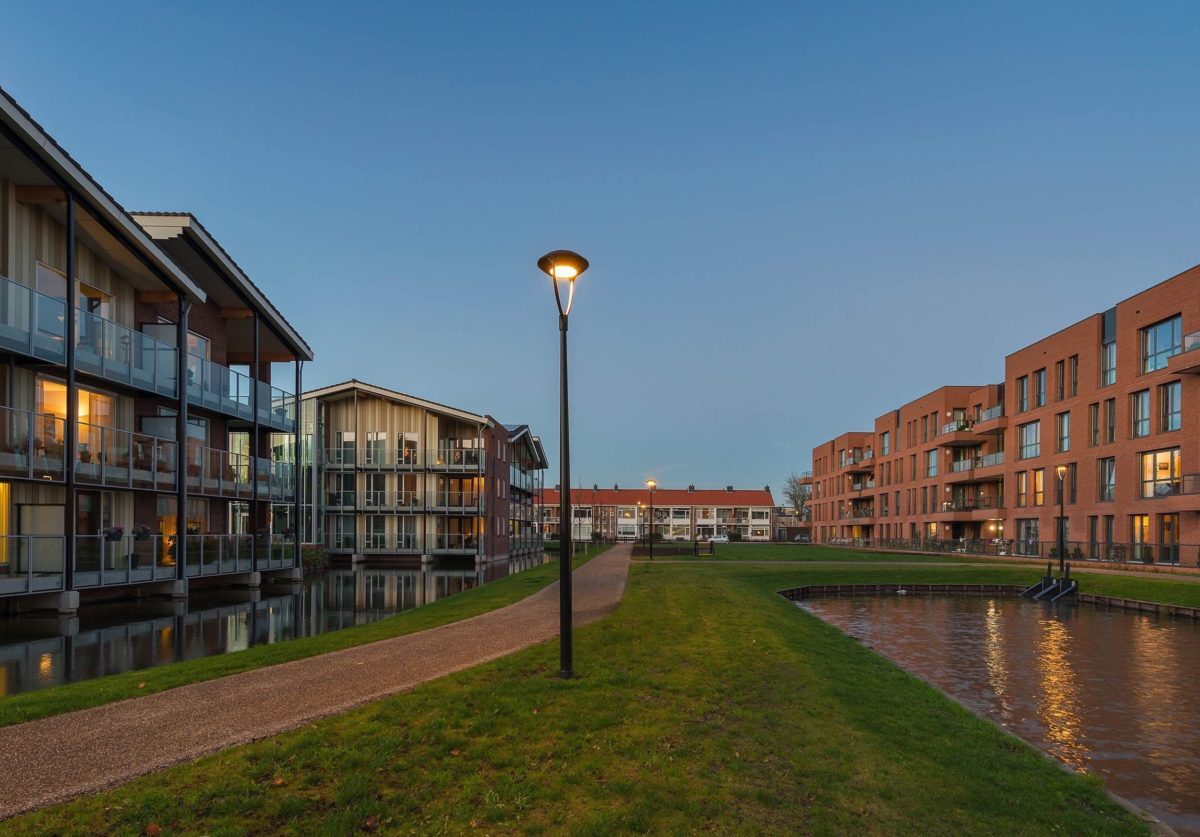

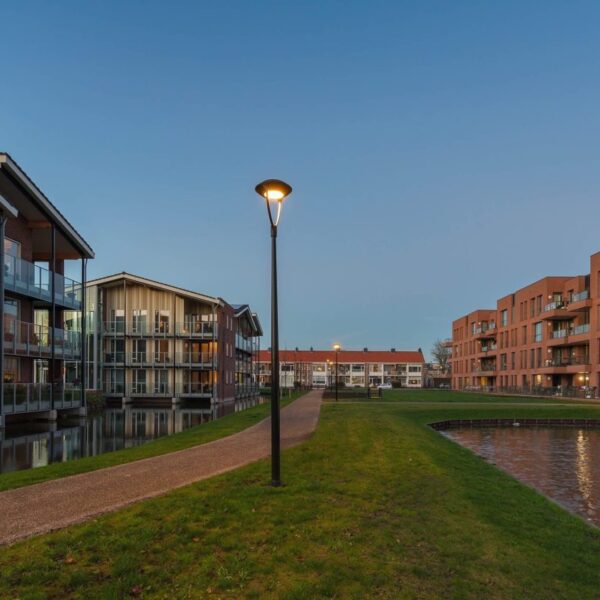

• Indice 500: Pedestrian areas, cycle paths, residential areas, street lighting
Indice 620: Roads, secondary urban and inter-urban streets
• Recommended heights:
Indice 500: 4 to 6 m
Indice 620: 6 to 8 m

DESCRIPTION

• Luminaire available in 2 sizes: Indice 500 and Indice 620
• Body and frame in injected die-cast aluminium
• Choice of aluminium domes: Graphic, Spiral, Volute and Parabol
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• Luminaire pre-wired in the factory (6 m) (except suspended)
• 2 types of sources:

ORALED 1 and 2 module:
- equipped with an ORALENS mono lens in PMMA/IK 08,module colour grey 2150 sanded or 2900 sanded
- colour temperature: 4000 K and 3000 K

SEOLED 1 and 2 module:
- equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

• Luminaire eligible for Energy Saving Certificates

CITIZEN REFERENCE POINTS

• Materials used:
- Indice 500: Aluminium 86%, Plastic 6%, Other 7%, Steel 1%
- Indice 620: Aluminium 87%, Plastic 6%, Other 6%, Steel 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• SC: Indice Suspended spoon coupled with sleeve to suit Ø 60 mm bracket arm (Graphic dome)
• L: Indice side entry fitting for bracket end with external Ø 60 mm (any dome)
• Top: Indice Top fitting for pole Ø 60/62 mm (any dome)
• LL: Indice lateral U-bracket (any dome)
• SL: Indice lateral suspended for bracket end with external Ø 60 mm
• LP: Indice top mounted U-bracket Ø 60 mm/ l=100 mm (any dome)
• SM: Indice Suspended with Ø 3⁄4” thread (any dome)
• SR: Indice suspended with swivel joint (any domes)
• CATELUX: Indice with SM Ø 27 pdg (G3/4”) fixation. Fixation on 5 to 14 mm diameter mechanical cable

DIMENSIONS

INDICE 500:
Ø: 465mm Height: 245mm
Weight: 6,6kg
Scx: 0,06m2

INDICE 620:
Ø: 565mm Height: 275mm
Weight: 9,3kg
Scx: 0,09m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
