ELYXE

Lighting
← →

ELYXE cultivates a sense of paradox; on the one hand, elementary, rigorous, tight forms combine to construct a volume, on the other hand, a light, pure silhouette that happily fits in urban realm.

ELYXE offers the choice of ways to light, whether it concerns creating an environment or searching for functional efficiency.

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Residence areas

APPLICATIONS

Mounting: top, wall bracket top mounted or suspended

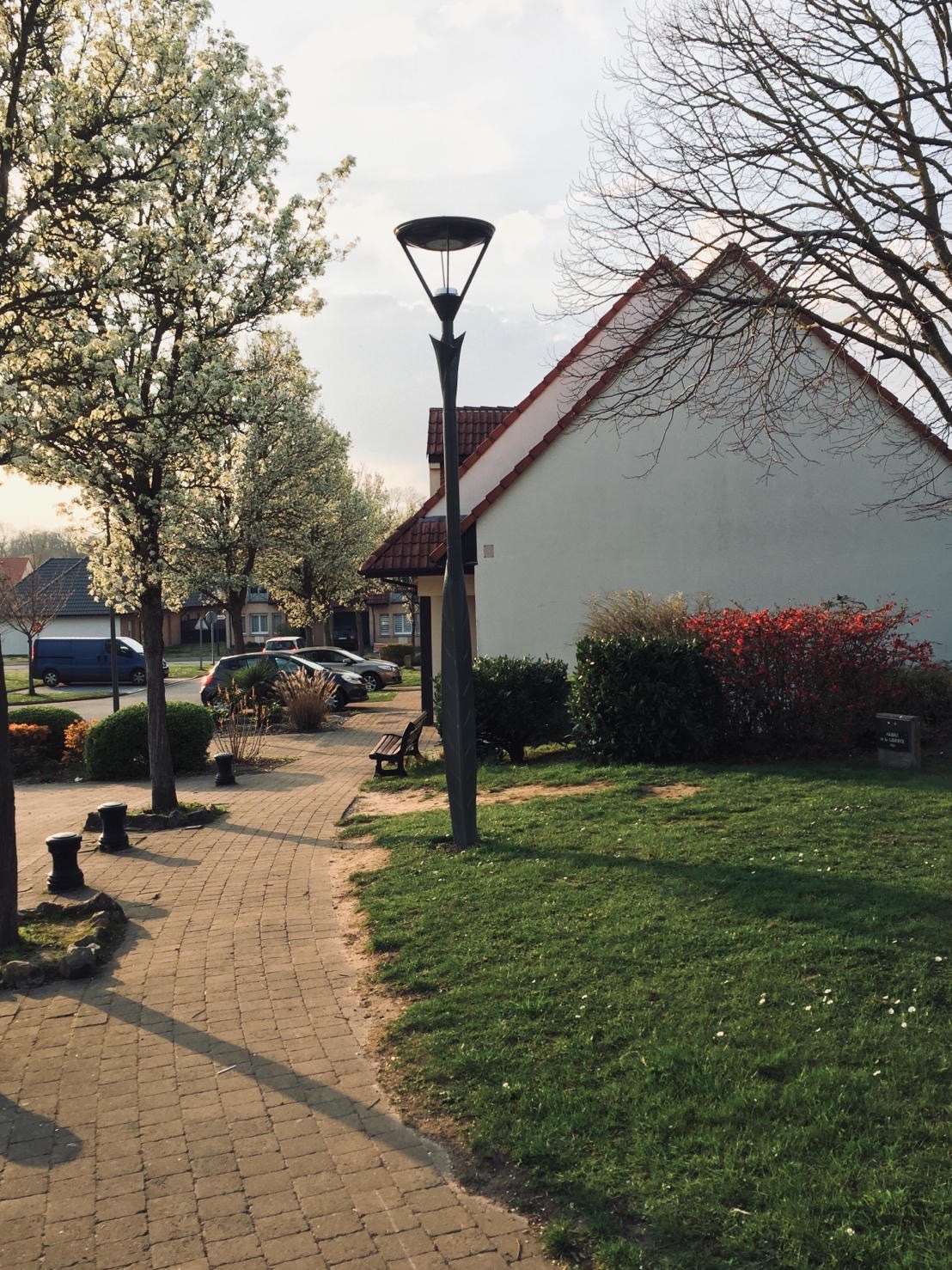

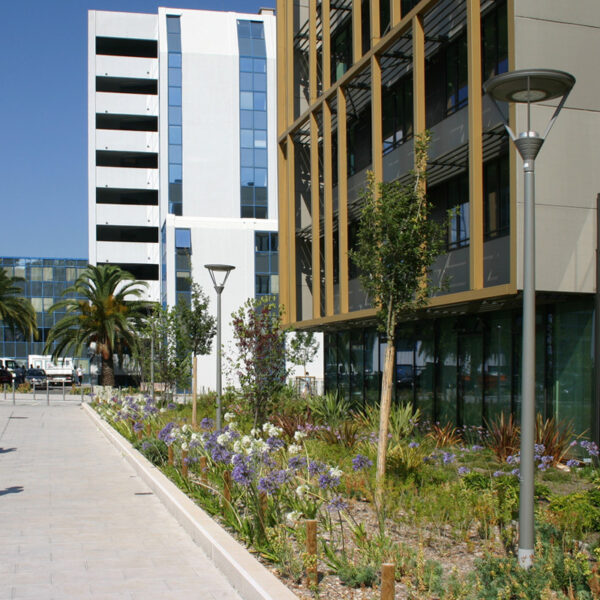

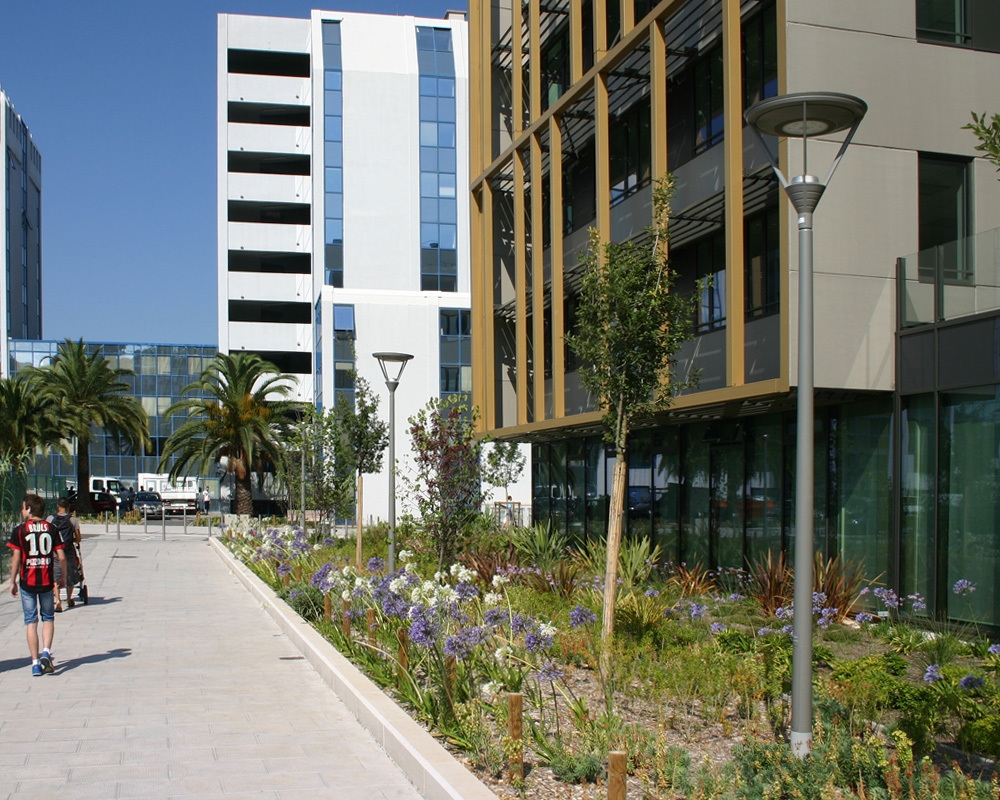

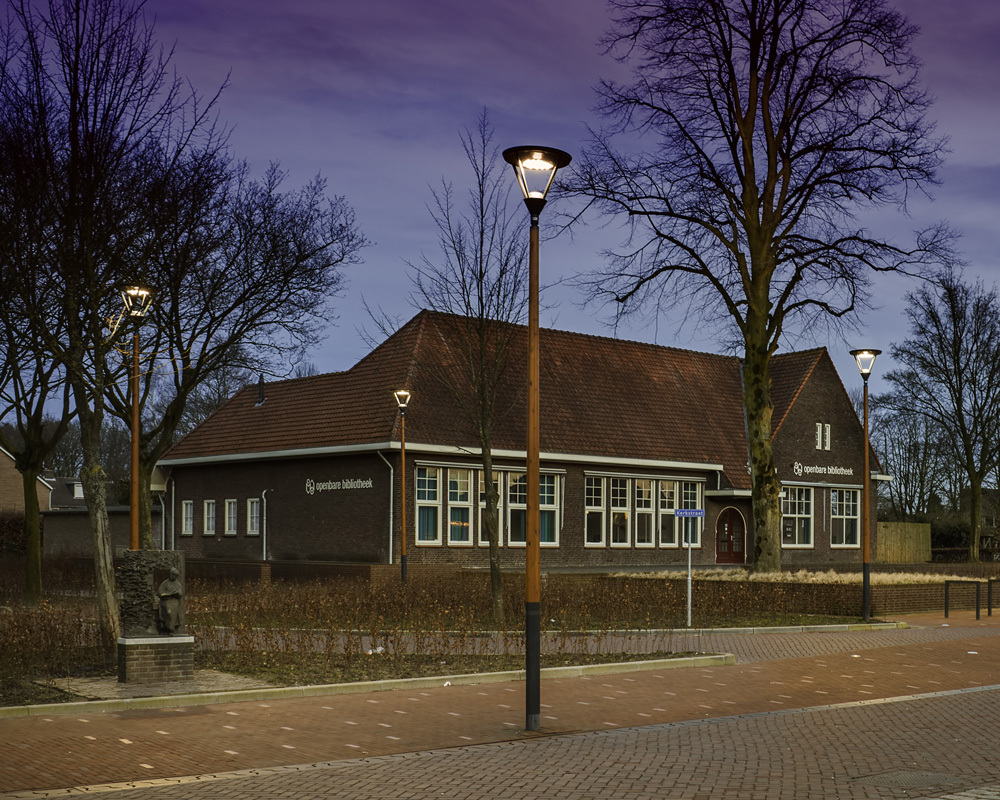

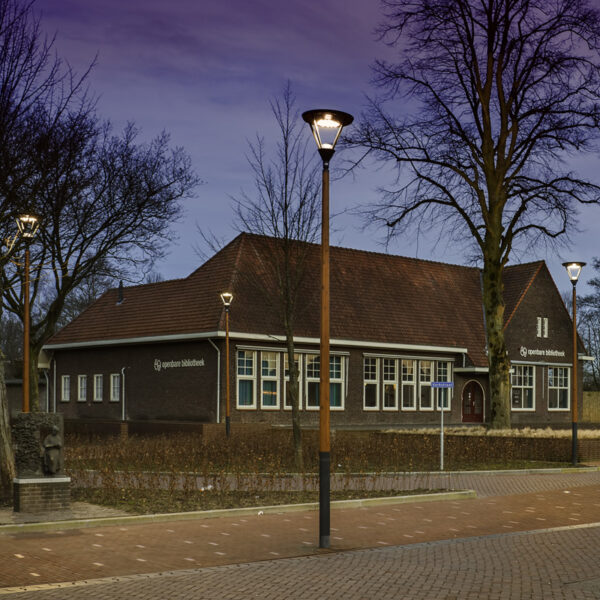

Urban routes, pedestrian walkways, cycle paths, squares, parks and pedestrian areas.
Recommended heights: 3 to 6 m

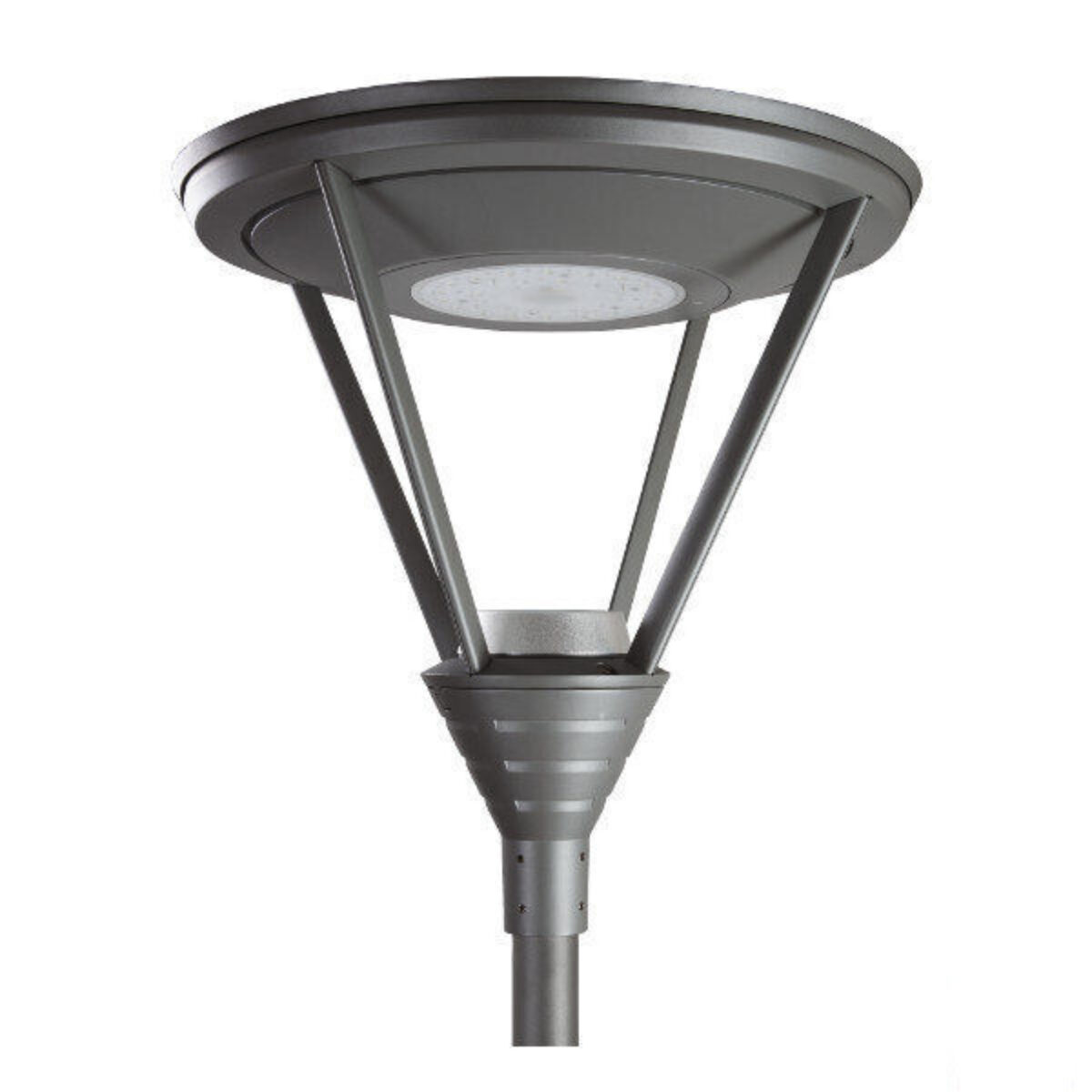

DESCRIPTION

Injection die-cast aluminium body
Extruded aluminium arms
Control gear in the upper luminaire body
Polyester powder coating, any colour available
IP 66
IK 08
Class I or II
Luminaire pre-wired in the factory (6 m)
2 types of sources:
ORALED 1 module :
- equipped with an ORALENS mono lens in PMMA/IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 4000 K and 3000 K

SEOLED 1 module:
- equipped with BLS with QUADRALENS lenses and glass bowl/IK 08,module colour grey 2150 sanded or 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

•Materials used:
-Aluminium 89%, Other 5%, Steel 4%, Plastic 2%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Post top fastening on standard pole Ø 60/62 mm
Post top fastening on specific pole Ø 76 mm
with spigot Ø 60 mm, L 85 mm
For pole Ø 76 mm top, optional spigot C

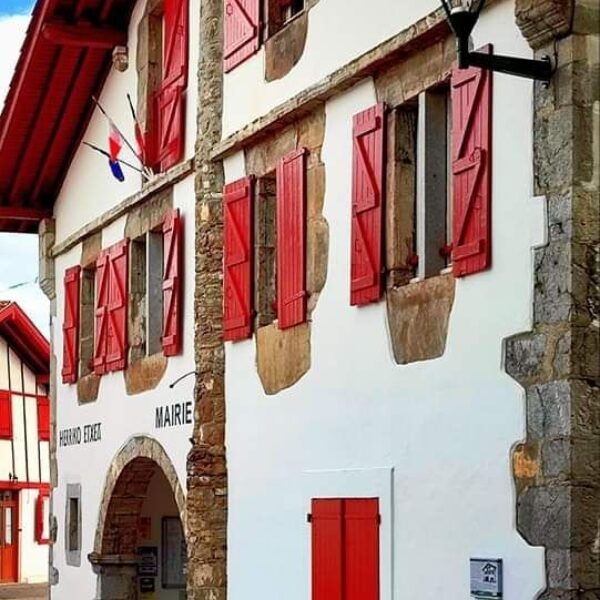

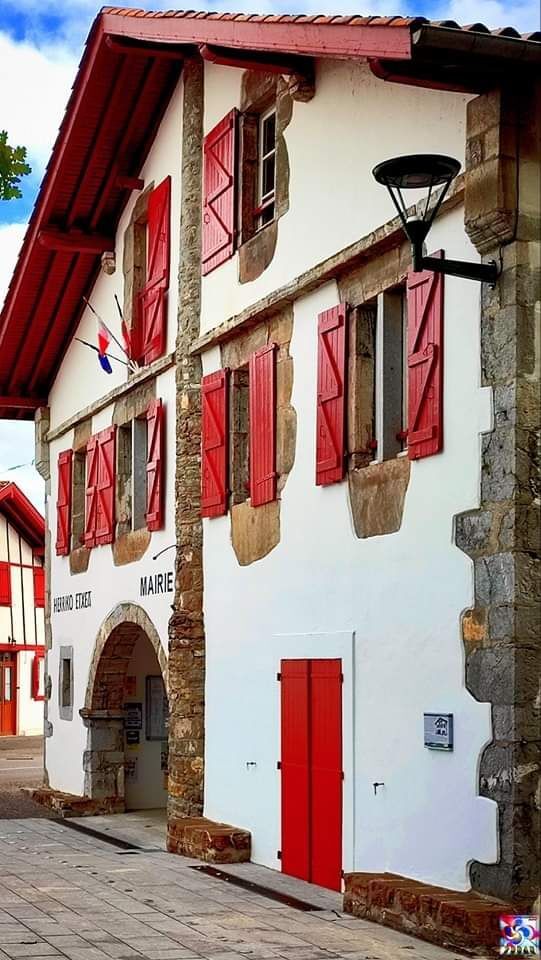

Top mounted or suspended from an Indigo wall bracket with integrated connection box
