AMARANTE

design by Eclatec

AMARANTE: Nice light column

Despite the fact that the AMARANTE Light Column is supplied as a ready-made product, there is still plenty to choose from in versions and options.

This way you can give your own twist to this beautiful combination.

Stately, sleek, simple but also not to be missed in the outdoor area.

Four powerful KIDLED modules provide a beautiful light image that you can spread in the direction you would like.

APPLICATIONS

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

• Mounting: finished product
• Recommended heights: 4 m

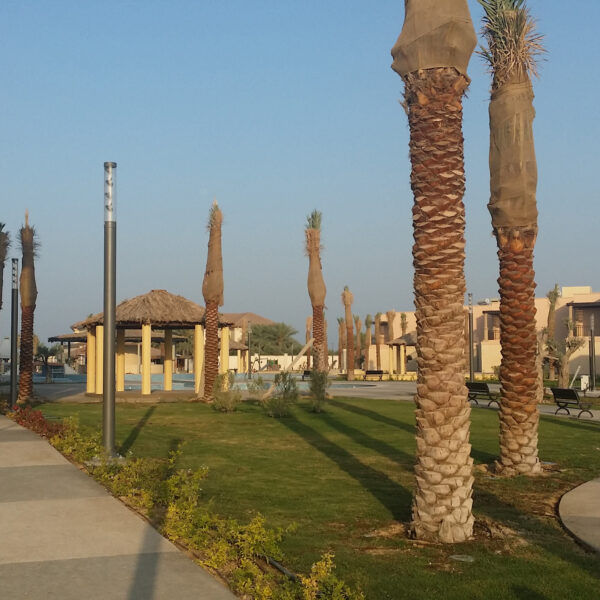

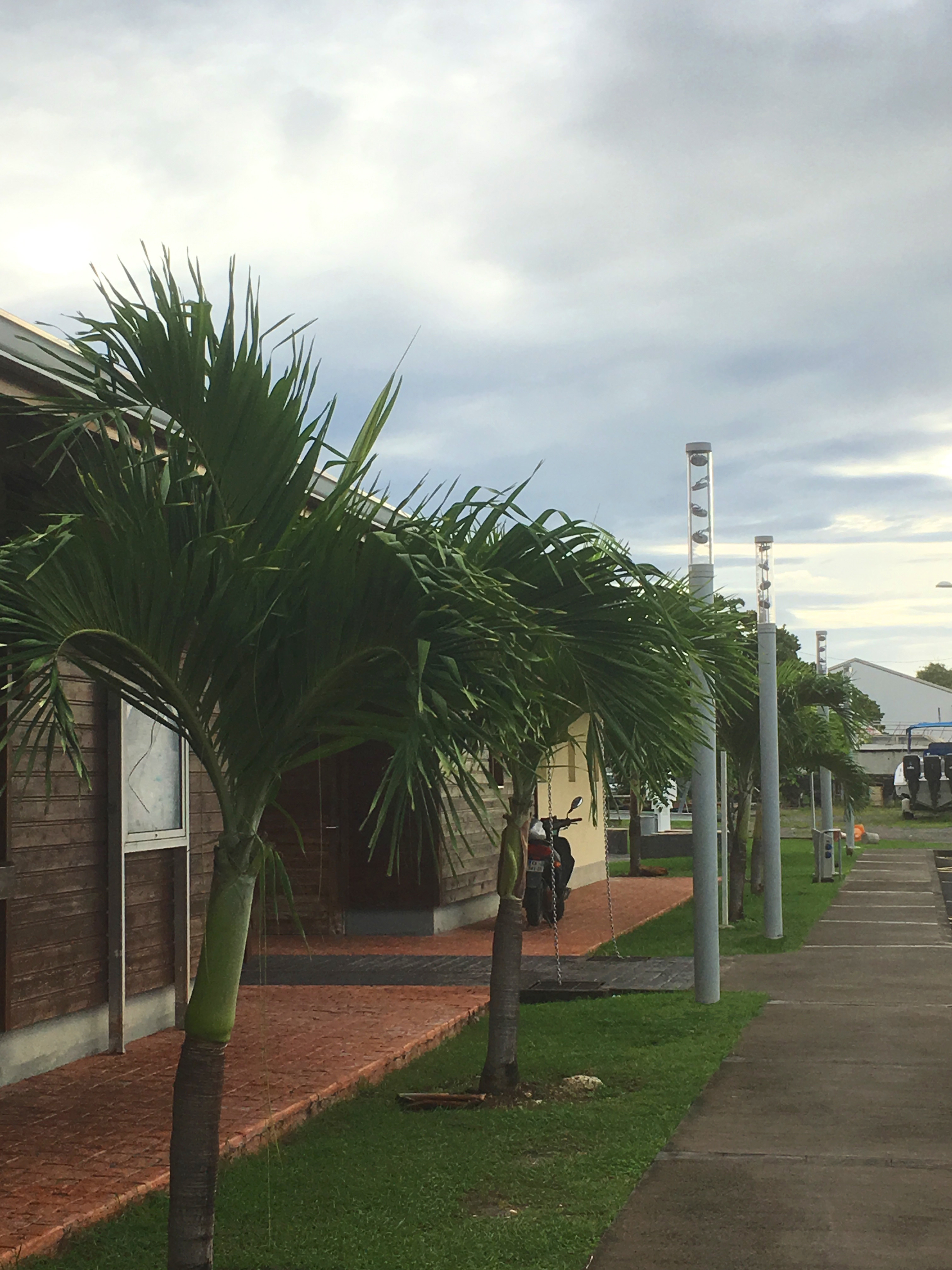

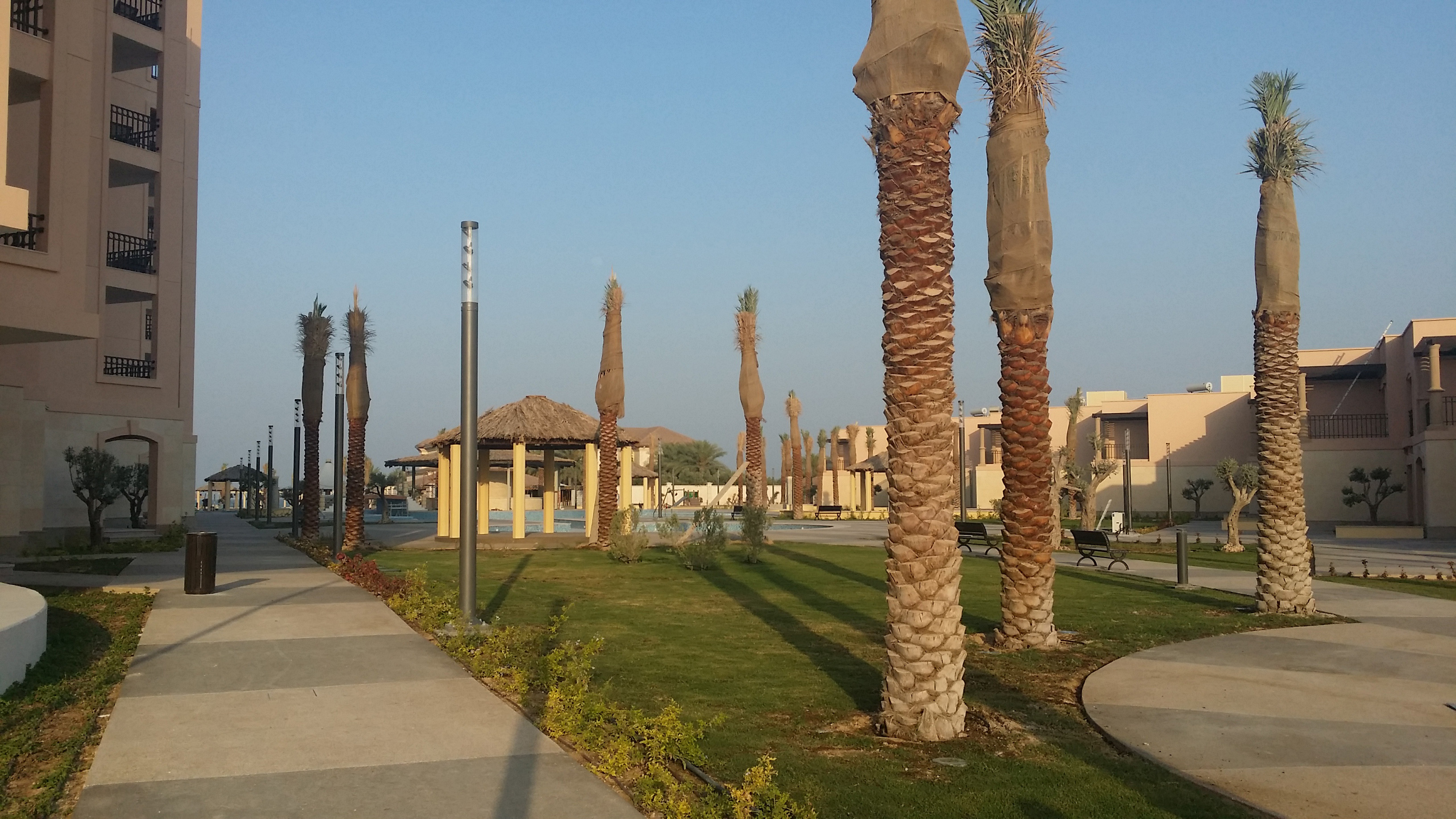

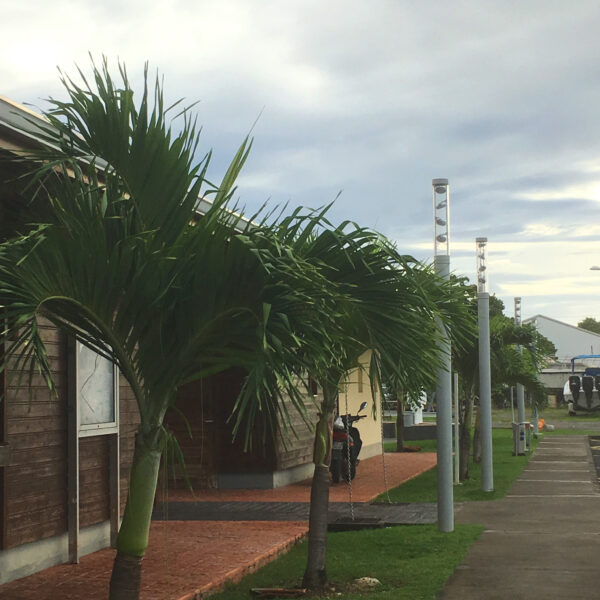

• Car parks, parks and gardens, residential lighting

DESCRIPTION

• Polycarbonate or PMMA clear tube, Ø 170 mm • Cylindrical steel pole 3 m (total height 4 m)
• Die cast aluminium bottom
• Polyester powder coating, any colour available
• IP 66
• IK 10 (polycarbonate) or IK06 (PMMA)
• Class I or II
• Control gear integrated on removable tray, placed in the base of the luminaire
• Options for direct optics: Screen print for clear polycarbonate or PMMA tube
• KIDLED modules with ORALENS mono lens, multidirectional, RAL 2900 sanded only
• Colour temperature: 4000 K

CITIZEN REFERENCE POINTS

• Materials used: Aluminium 57%, Steel 24%, Plastic 18%, Other 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Silicone gasket on the base

MECHANICAL INTERFACES

• Male bracket fastening luminaire for top fixation
• Tubular pole Ø 170 mm with flange plate 300 x 300 mm

DIMENSIONS

Ø180mm
Height: 923mm
Weight: 72kg
Scx: 0,56m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth

Downloads

AMARANTE AXEL EN 2020 GHM Eclatec pdf Mounting Instruction Amarante
