ZEN

design by Eclatec

ZEN, the ideal pedestrian street light, serenely meets today’s challenges.Firstly, it uses known mechanical and optical principles that have proven their solidity and efficiency.Furthermore, ZEN easily adapts to the specificities of communicating systems; the street light is even available in a Smart-Ready® version preconfigured to house most commercially available solutions, including, of course, the ECLATEC WIZARD system.
ZEN will support your projects over time, both simply and reliably.

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Main roads

Main roads

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: top

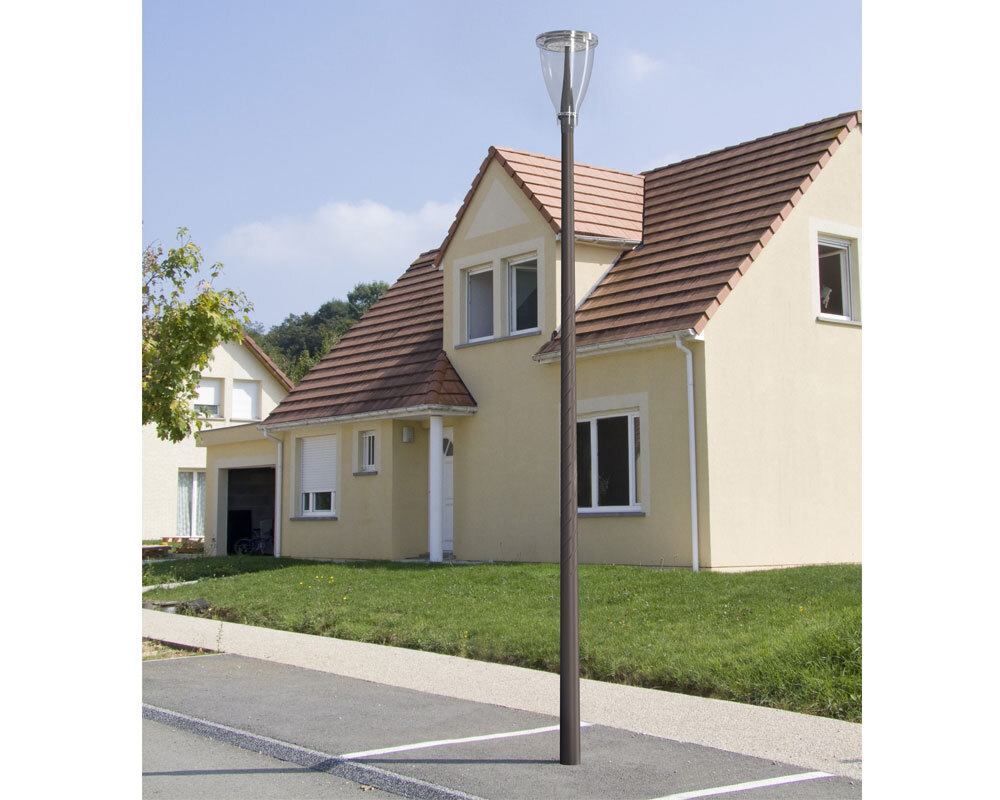

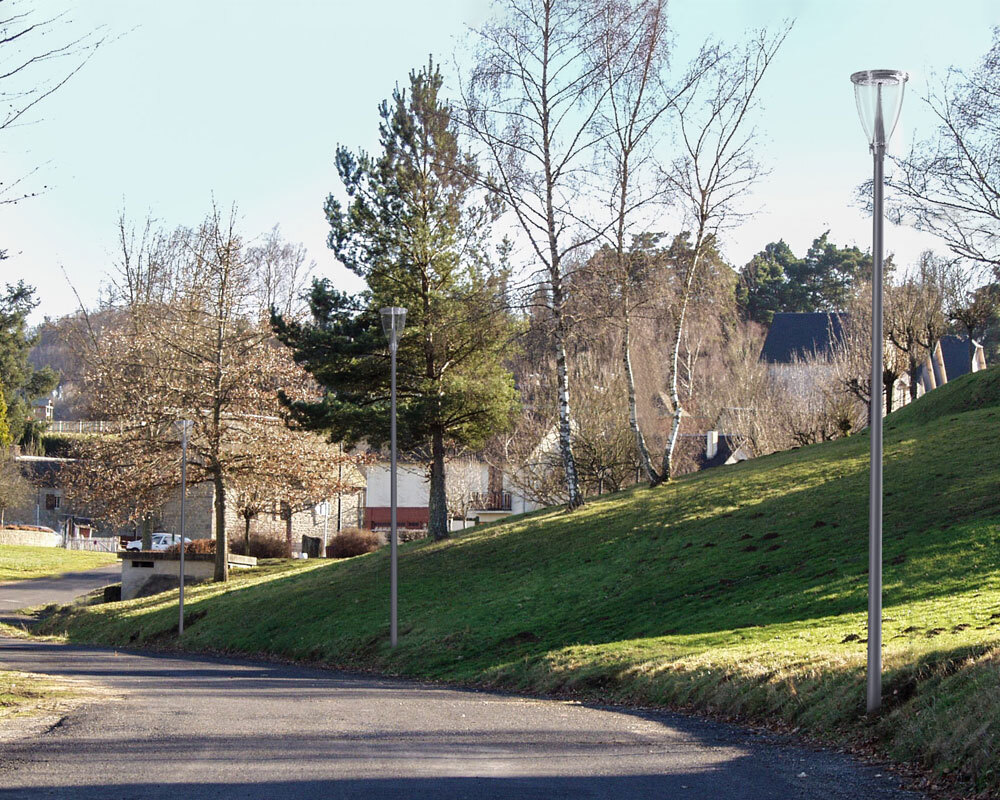

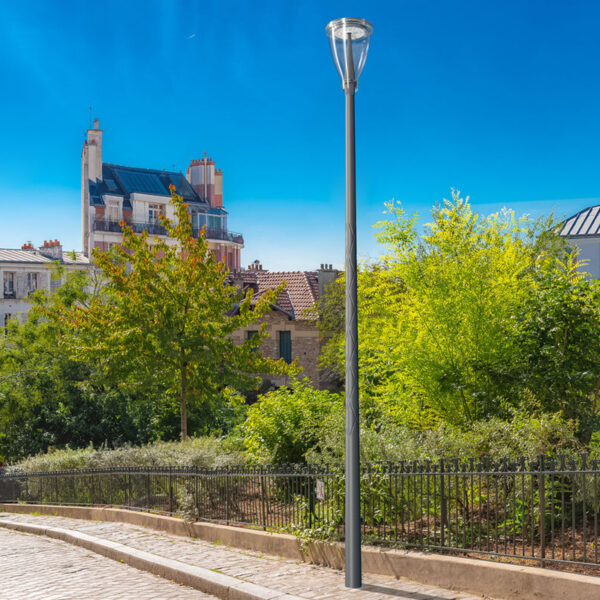

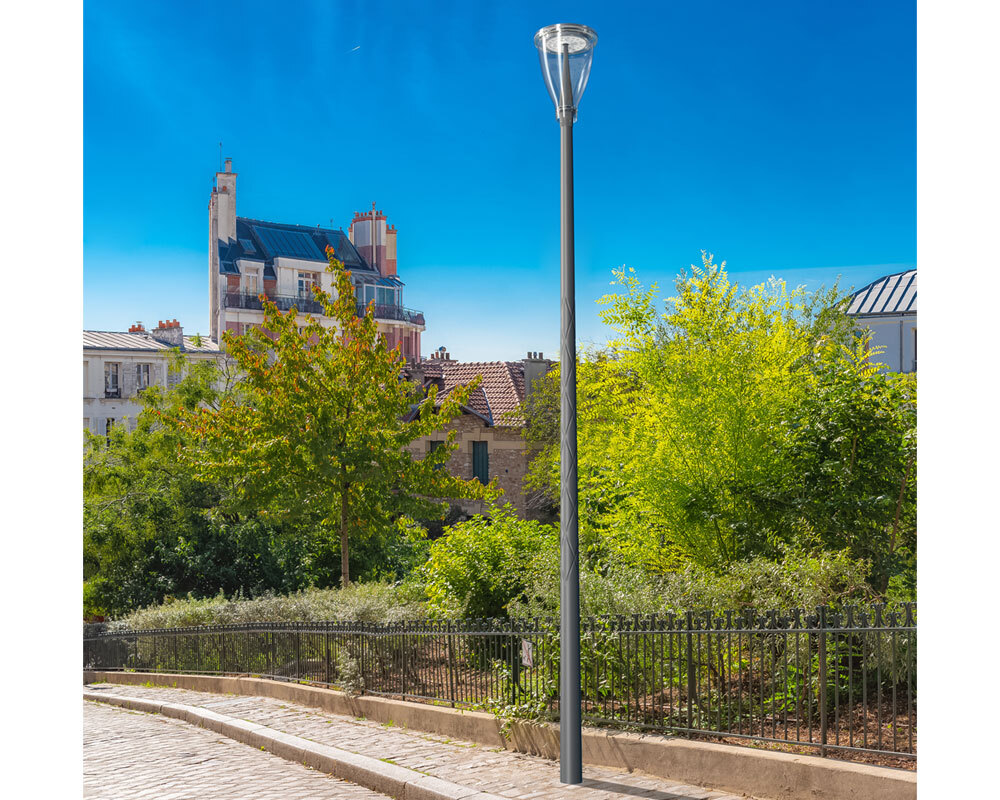

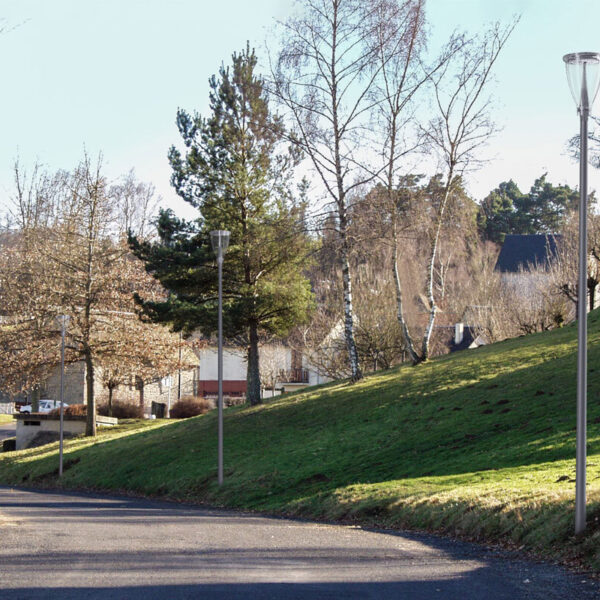

• Carparks, parks and gardens, pedestrian paths, cycle paths.
• Recommended heights: 3,5 to 5 m

DESCRIPTION

  • Injected die cast aluminium bottom and canopy
  • Clear (standard) or grey (option) frame, in polycarbonate
  • Polyester powder coating 2150 sanded grey, RAL and other colours on the base and canopy are optional
  • IP 66
  • Sources ; 2 versions:

    ZEDLED C module:
    - equipped with an ORALENS mono lens - colour temperature: 4000 K and 3000 K
    BLS strips :
    - equipped with QUADRALENS lenses
    - colour temperature:
    2400 K, 2700 K, 3000 K or 4000 K

  • Grey colour central post
  • IK 10 - 50 joules
  • Class I or II
  • Luminaire pre-wired in the factory (6 m)

CITIZEN REFERENCE POINTS

• Materials used:
- Plastic 43%, Aluminium 36%, Steel 10%, Other 11%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket on the base, canopy and lower part
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Post-top fastening on pole Ø 60/62 mm, with 4 screws
• For pole Ø 76 mm top, optional spigot C

DIMENSIONS

• Ø 400 mm, Height 639 mm
• Weight 8kg
• Scx 0,15m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
