ODELIA LED

design by GHM

Simply reinterpreting the silhouettes common at the beginning of the 20th century, ODELIA clearly shines in classical versions, but brings some much needed sobriety to more contemporary configurations.

ODELIA is available in two sizes.

Although the line of descent of this luminaire draws inspiration from classical forms, this is done without compromise when it comes to modern technologies: in its LED version, depending on the size, ODELIA takes the ORALED 1 or 2 and the SEOLED 1 or 2 modules.

APPLICATIONS

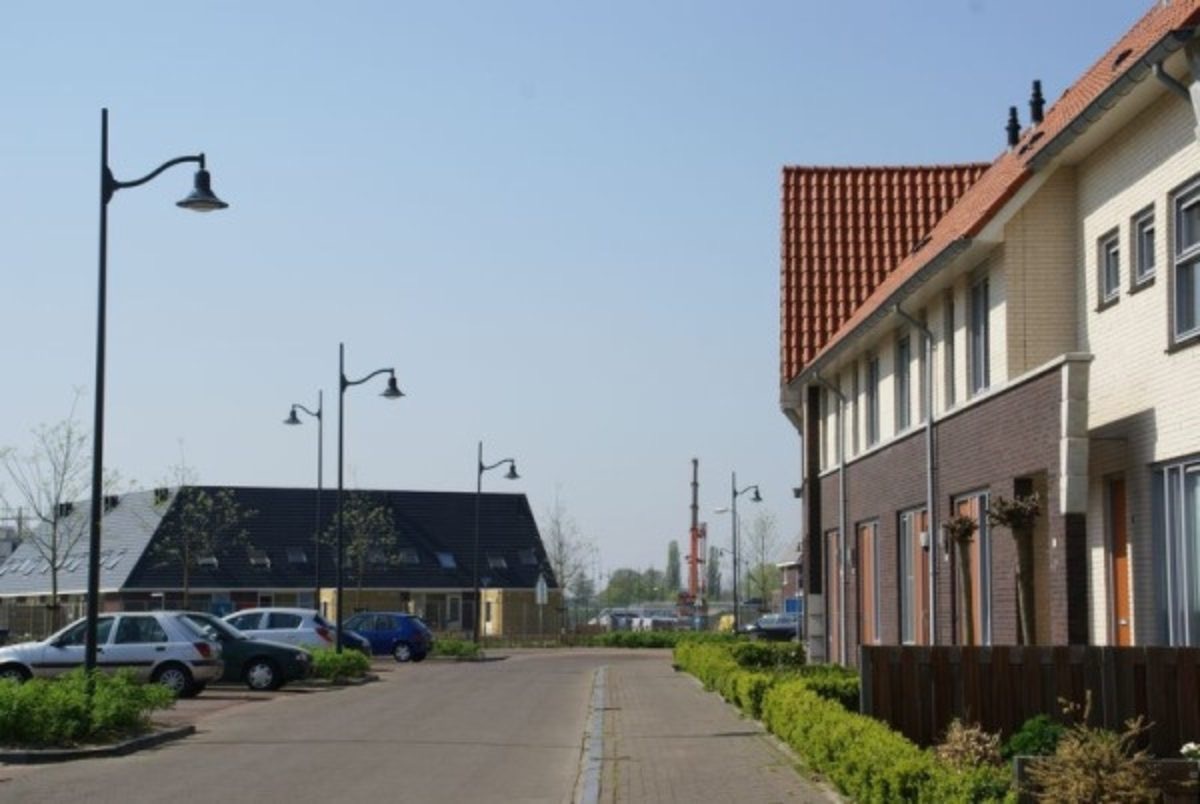

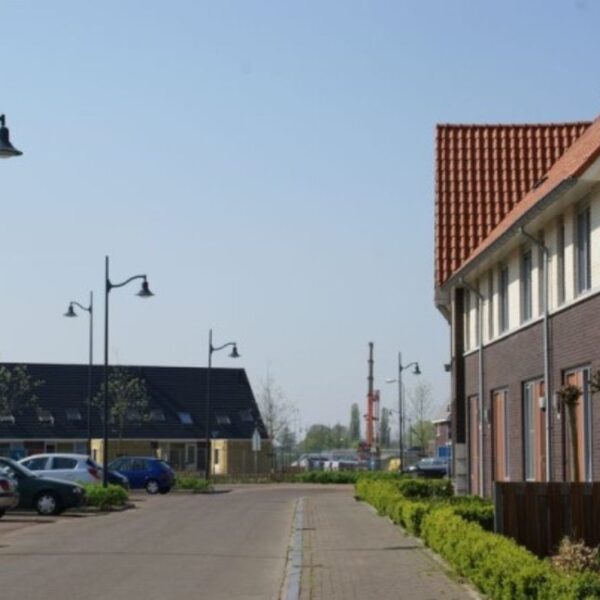

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: suspended
• Recommended heights:
ODELIA 550: 5 to 8 m
ODELIA 670: 6 to 8 m

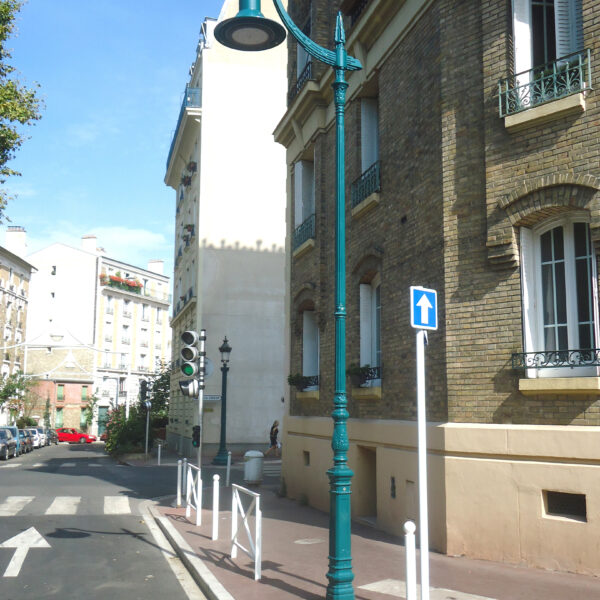

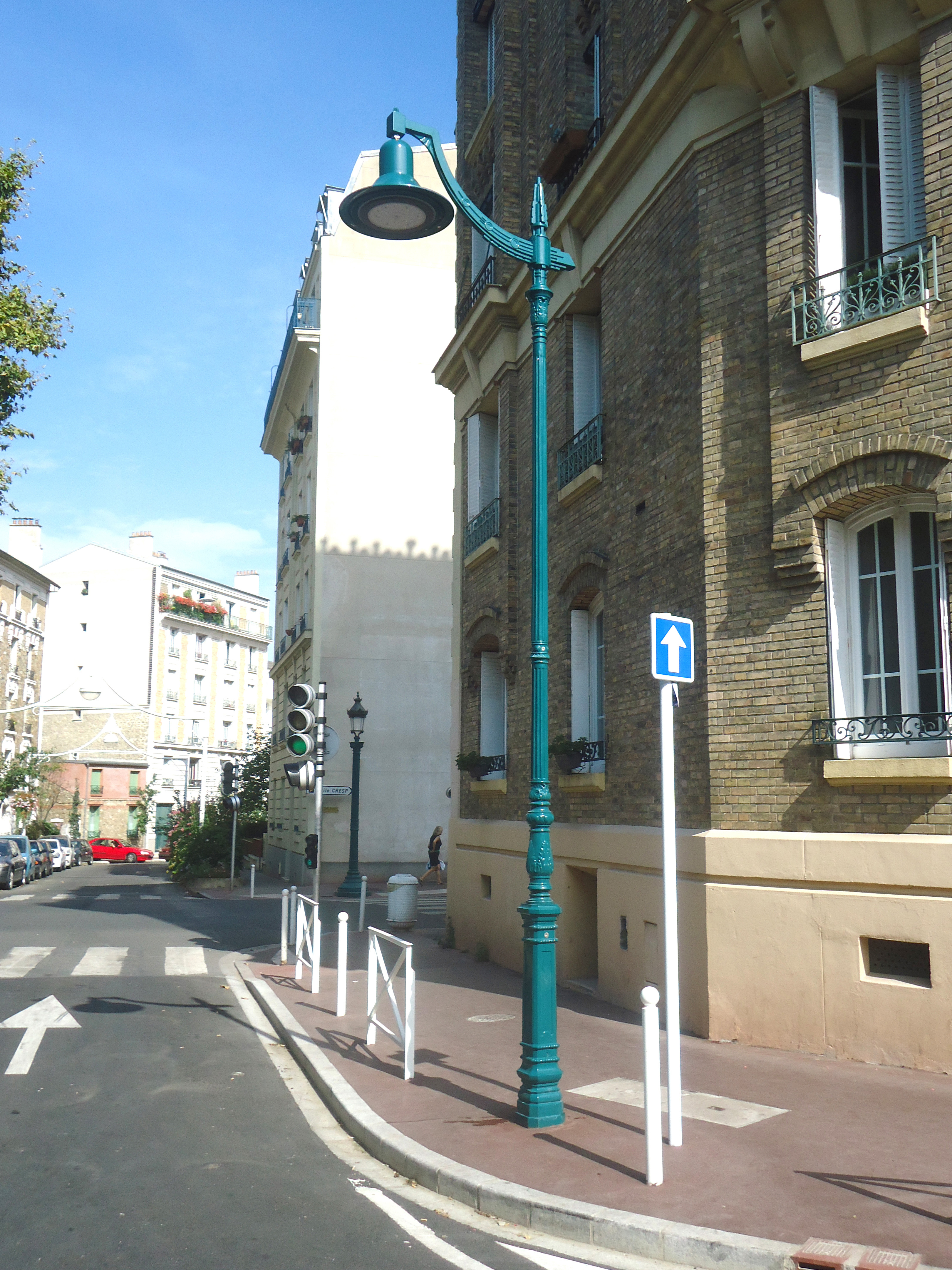

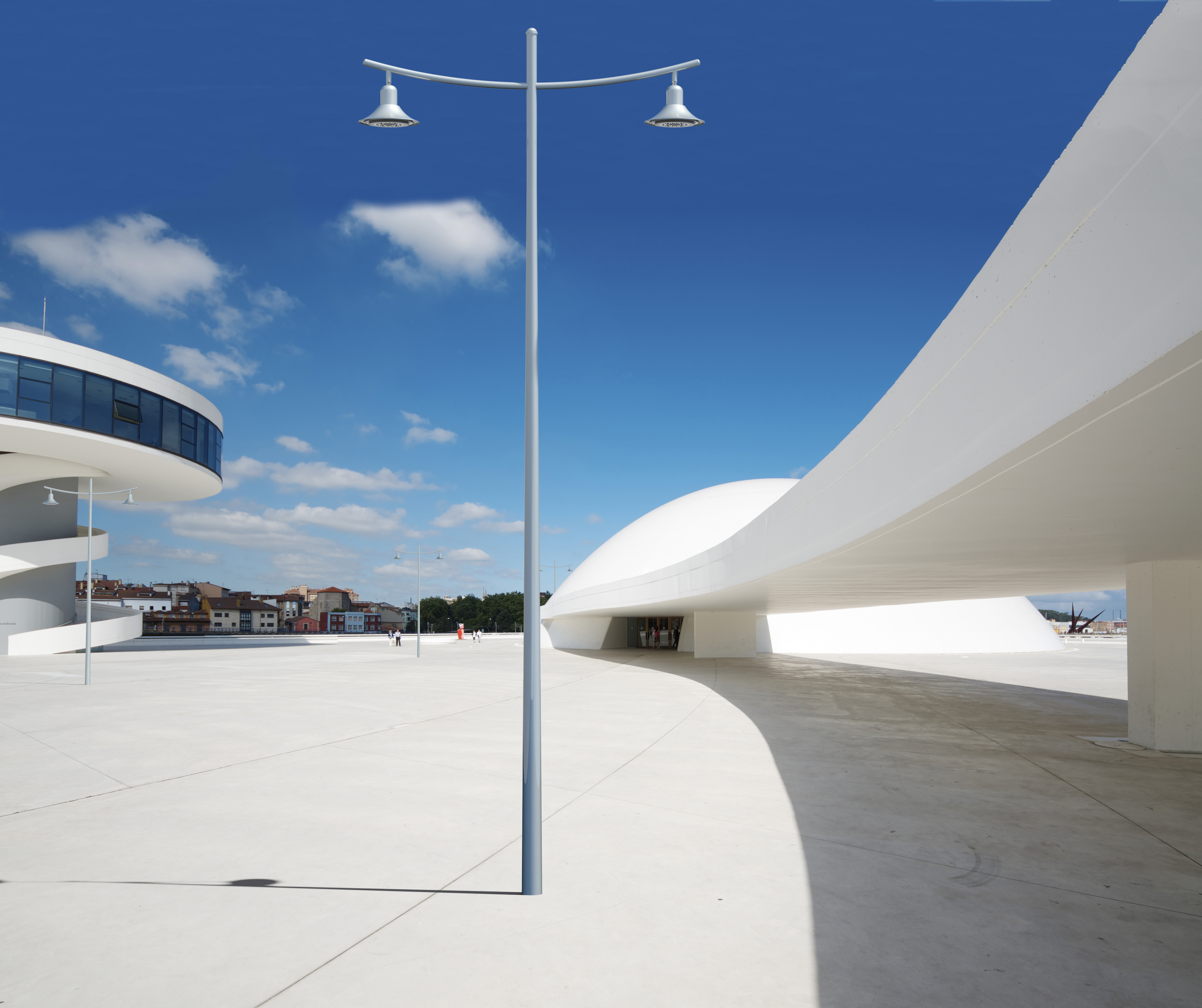

• Urban streets, pedestrians, cycle paths, squares

DESCRIPTION

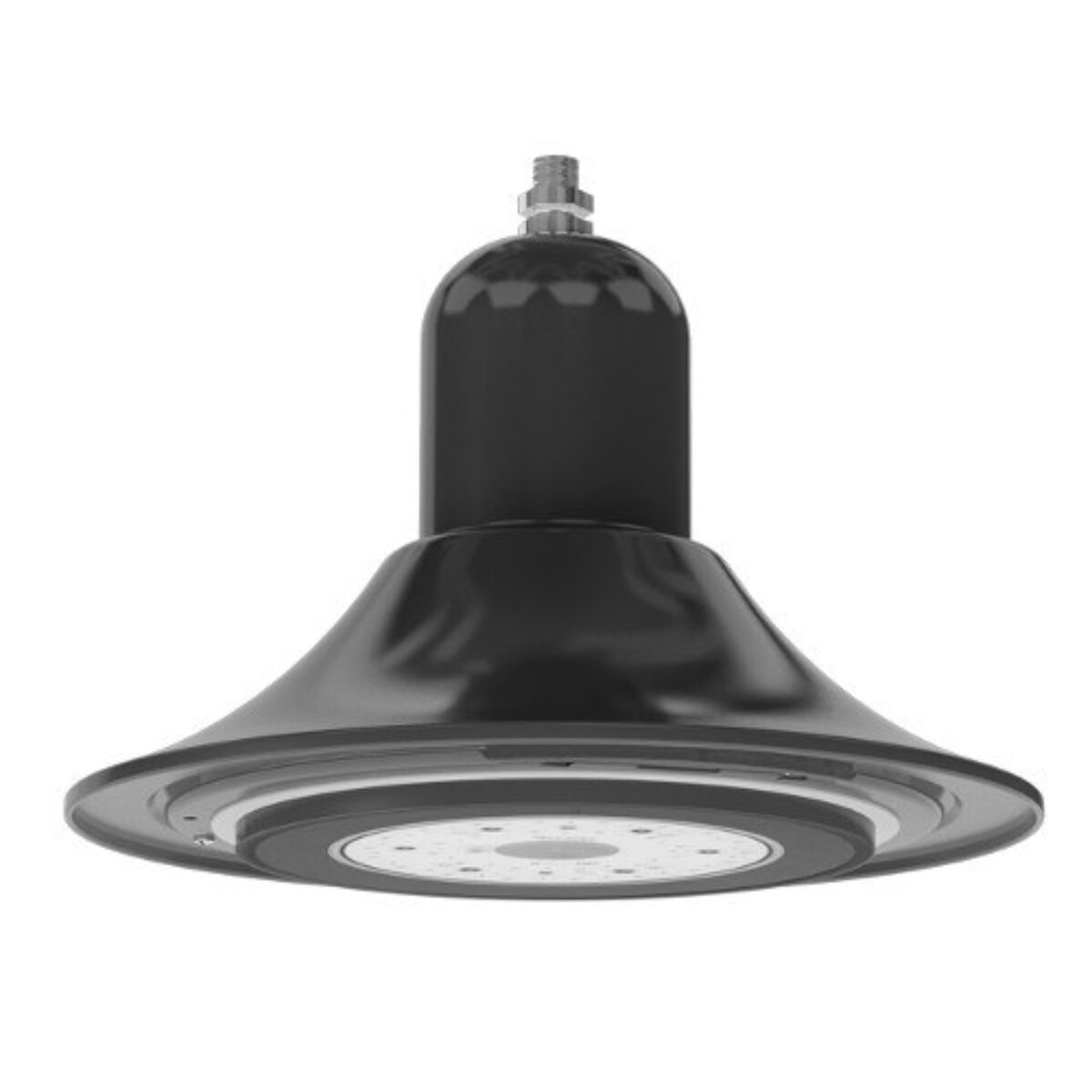

  • Luminaire available in 2 sizes: Odelia 550 and Odelia 670.
  • Spun aluminium dome on a cast aluminium frame
  • Polyester powder coating, any colour available
  • IP 65
  • IK 07
  • Class I or II
  • 2 types of sources:

    ORALED 1 and 2 module:
    - equipped with an ORALENS mono lens in PMMA/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature: 4000 K and 3000 K

    SEOLED 1 and 2 module:
    - equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
    - colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used: Aluminium 71%, Steel 24%, Plastic 4%, Other 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 65 (optic and equipment) waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket - high temperature

MECHANICAL INTERFACES

• Odelia 550: suspended with a threaded Nipple Ø 27 pdg (G3/4”), L 30 mm
• Odelia 670: suspended with a threaded Nipple Ø 34 pdg (G1’’), L 30 mm

DIMENSIONS

ODELIA 550:
Ø: 550mm Height: 350mm
Weight: 7,8kg
Scx: 0,10m2

ODELIA 670:
Ø: 670mm Height: 450mm
Weight: 8,3kg
Scx: 0,15m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
