INDICE

design by Eclatec

This luminaire disguises its true purpose well; this intention inspired the creation of INDICE.

Over and above its apparent wisdom, on examination, this luminaire reveals a more playful temperament, asserting itself with joy by way of a happy panoply of domes, cross- arms and mountings.

For each usage, each context, each intention, an “interactive” choice is left for the designer, who assembles their idea and loves the joyous simplicity of INDICE.

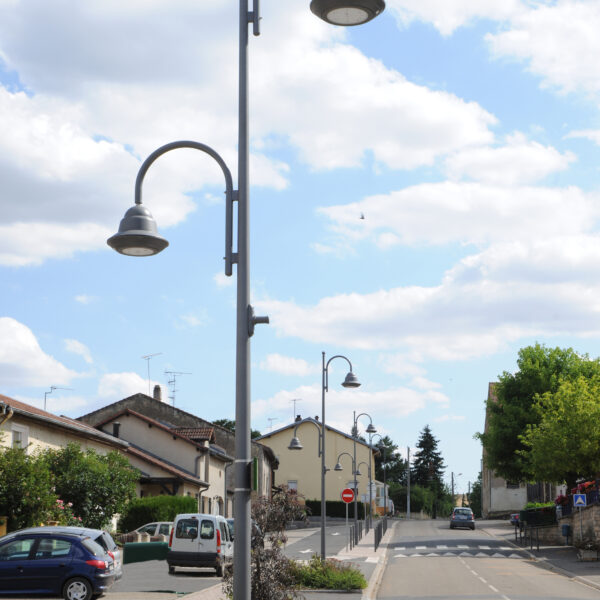

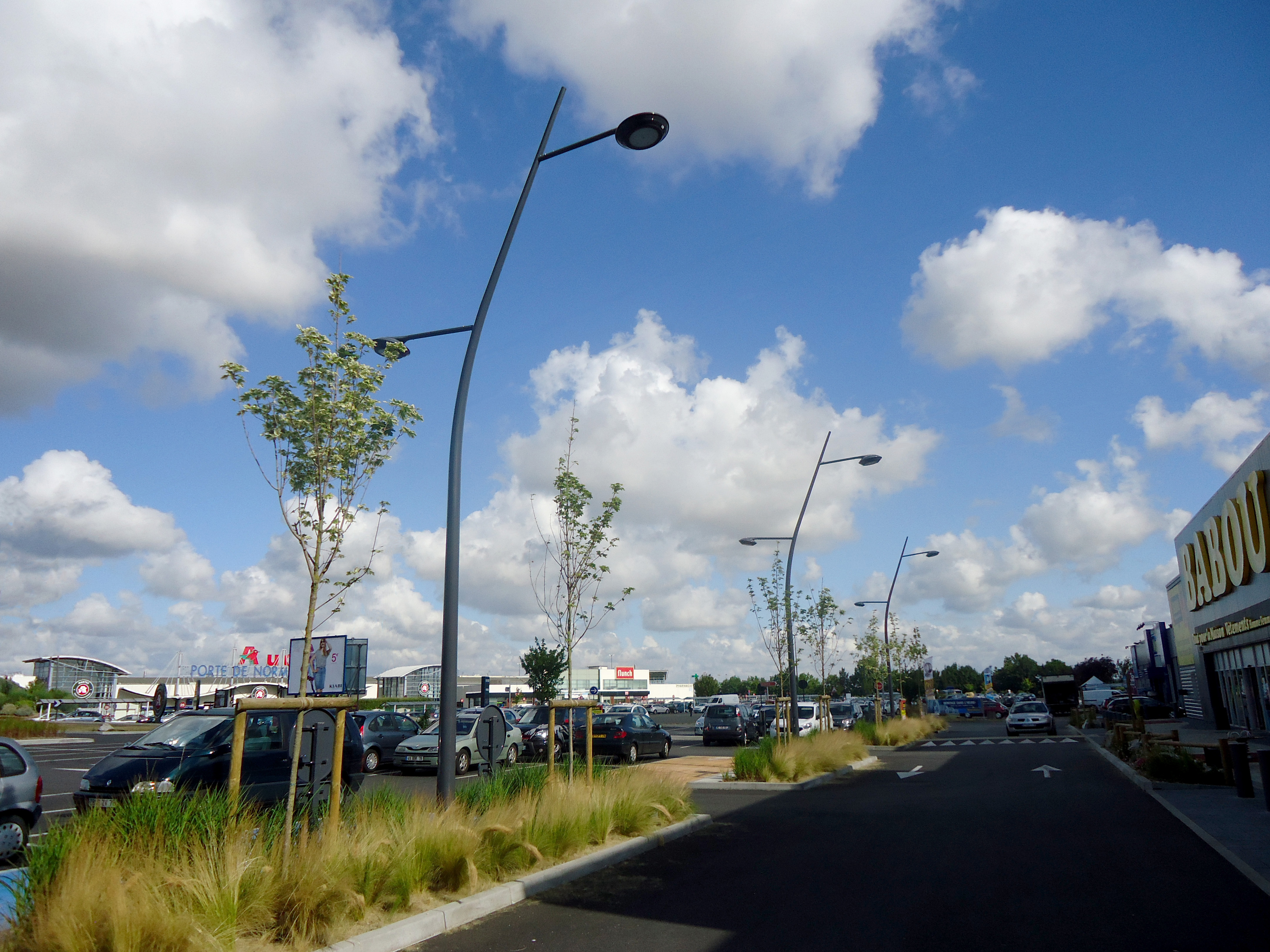

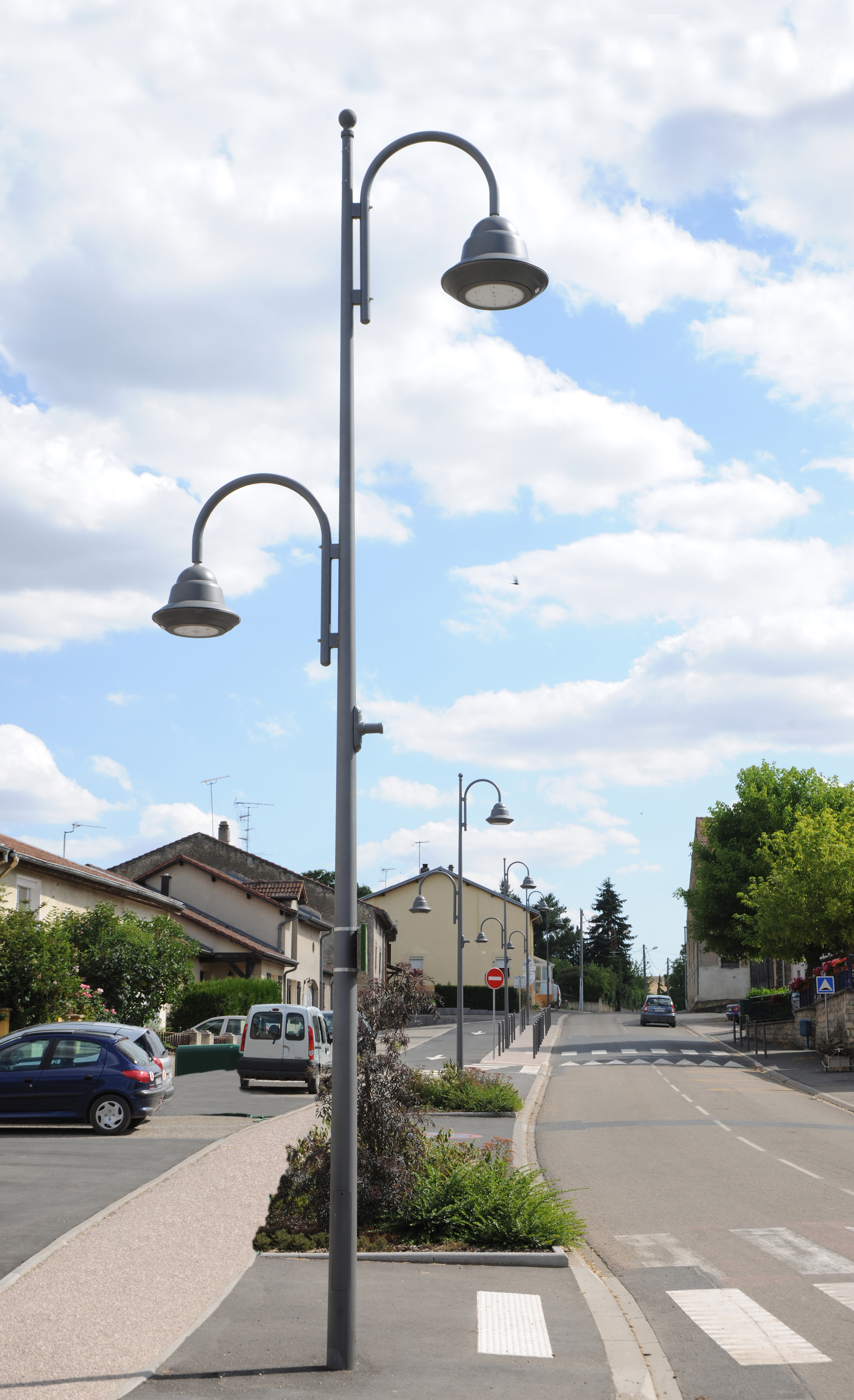

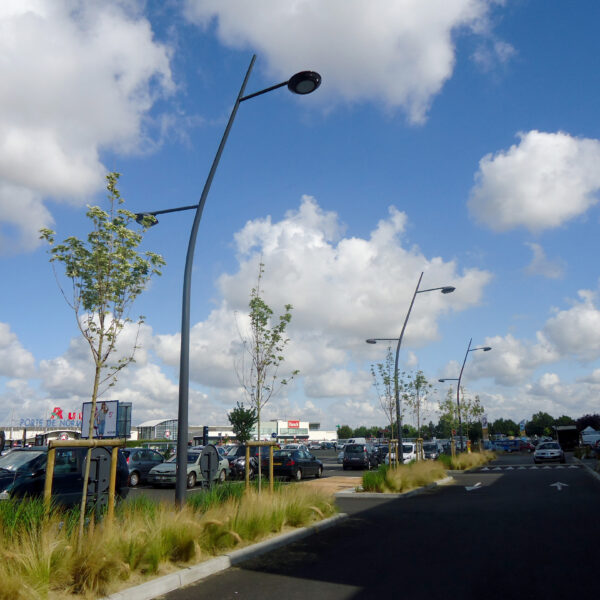

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Main roads

Main roads

Icon Residence areas

Residence areas

APPLICATIONS

APPLICATIONS

• Mounting: top, suspended and side entry
• Indice 500: Pedestrian areas, cycle paths, residential areas, street lighting
• Indice 620: Roads, secondary urban and inter-urban streets
• Recommended heights:
Indice 500: 4 to 6 m
Indice 620: 6 to 8 m

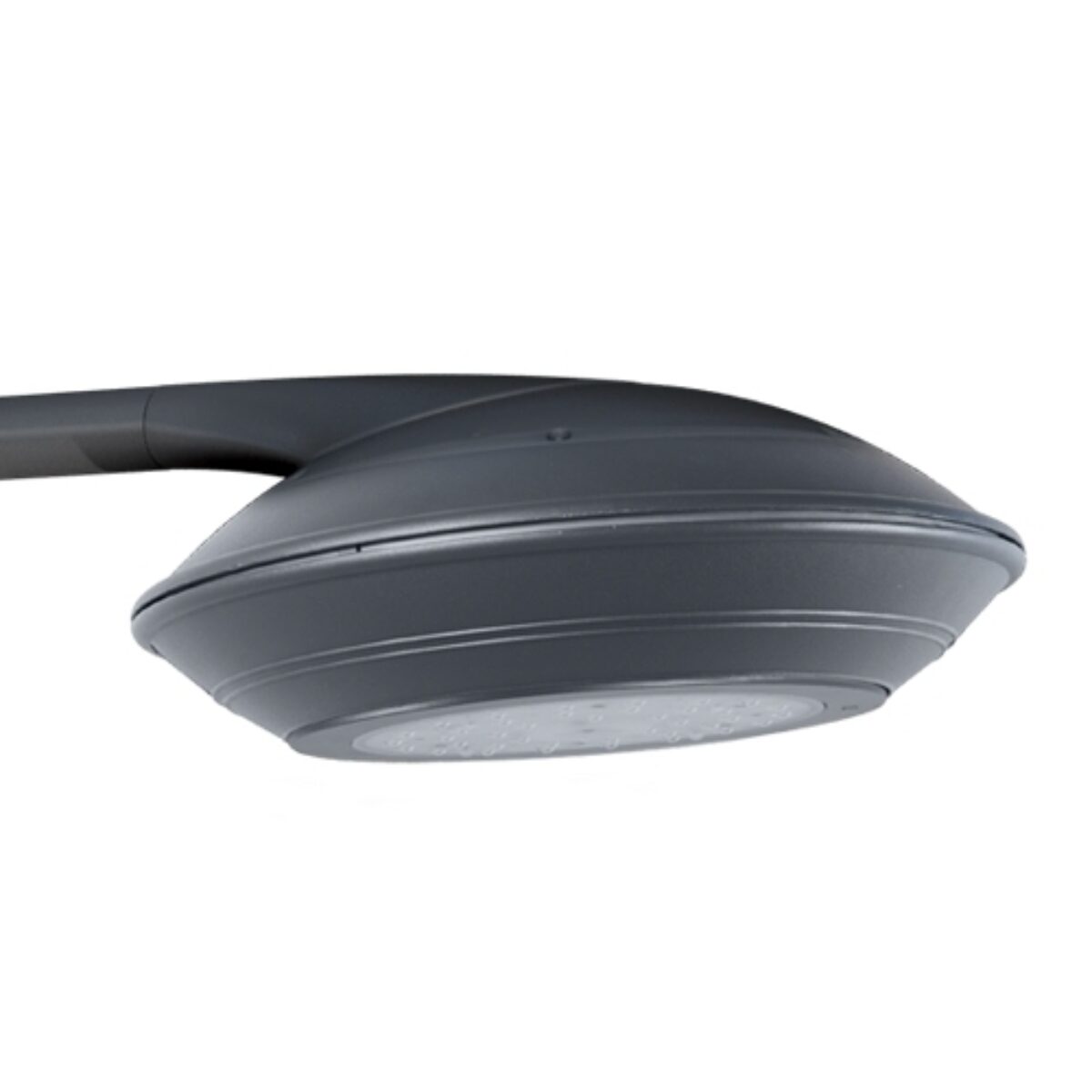

DESCRIPTION

• Luminaire available in 2 sizes: Indice 500 and Indice 620
• Body and frame in injected die-cast aluminium
• Choice of aluminium domes: Graphic, Spiral, Volute and Parabol
• Polyester powder coating, any colour available
• IP 66
• Class I or II
• Luminaire pre-wired in the factory (6 m) (except suspended)
• 2 types of sources:
ORALED 1 and 2 module:
- equipped with an ORALENS mono lens in PMMA/IK 08,module colour grey 2150 sanded or 2900 sanded
- colour temperature: 4000 K and 3000 K

SEOLED 1 and 2 module:
- equipped with BLS with QUADRALENS lenses and glass bowl/IK 08, module colour grey 2150 sanded or 2900 sanded
- colour temperature: 2400 K, 2700 K, 3000 K or 4000 K

  • Luminaire eligible for Energy Saving Certificates

CITIZEN REFERENCE POINTS

• Materials used:
- Indice 500: Aluminium 86%, Plastic 6%, Other 7%, Steel 1%
- Indice 620: Aluminium 87%, Plastic 6%, Other 6%, Steel 1%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• SC: Indice Suspended spoon coupled with sleeve to suit Ø 60 mm bracket arm (Graphic dome)
• L: Indice side entry fitting for bracket end with external Ø 60 mm (any dome)
• Top: Indice Top fitting for pole Ø 60/62 mm (any dome)
• LL: Indice lateral U-bracket (any dome)
• SL: Indice lateral suspended for bracket end with external Ø 60 mm
• LP: Indice top mounted U-bracket Ø 60 mm/ l=100 mm (any dome)
• SM: Indice Suspended with Ø 3⁄4” thread (any dome)
• SR: Indice suspended with swivel joint (any domes)
• CATELUX: Indice with SM Ø 27 pdg (G3/4”) fixation. Fixation on 5 to 14 mm diameter mechanical cable

DIMENSIONS

INDICE 500:
Ø: 465mm Height: 245mm
Weight: 6,6kg
Scx: 0,06m2

INDICE 620:
Ø: 565mm Height: 275mm
Weight: 9,3kg
Scx: 0,09m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
