CLIP: A foundation in the lighting world.

The CLIP has long proven itself over the years and you could therefore call it a foundation in the lighting world.

The housing has been satisfactory for decades and is always equipped with the latest techniques.

This model has therefore been widely used in the Netherlands over time.

They still determine the streetscape, especially on main roads, provincial roads or in industrial areas.

If you want to keep this, the CLIP is a great option to apply.

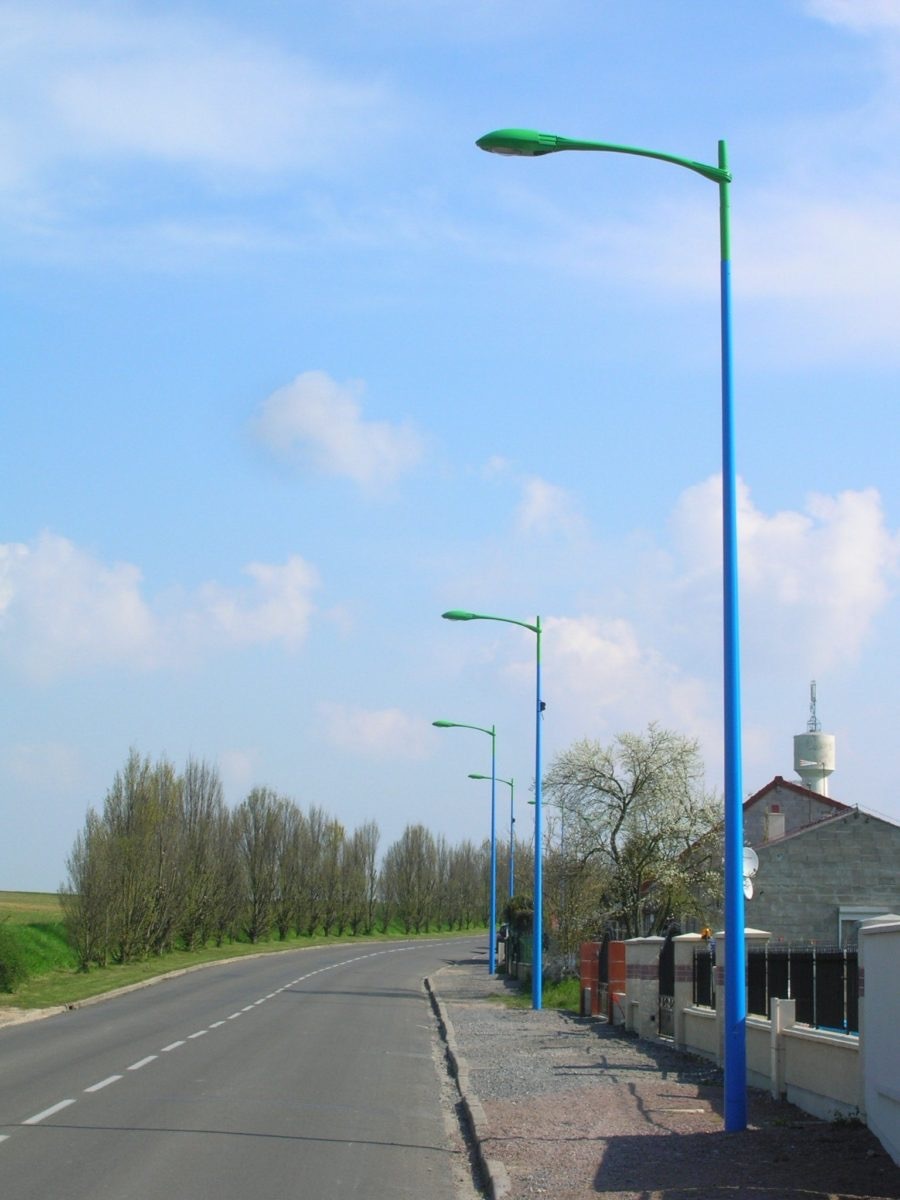

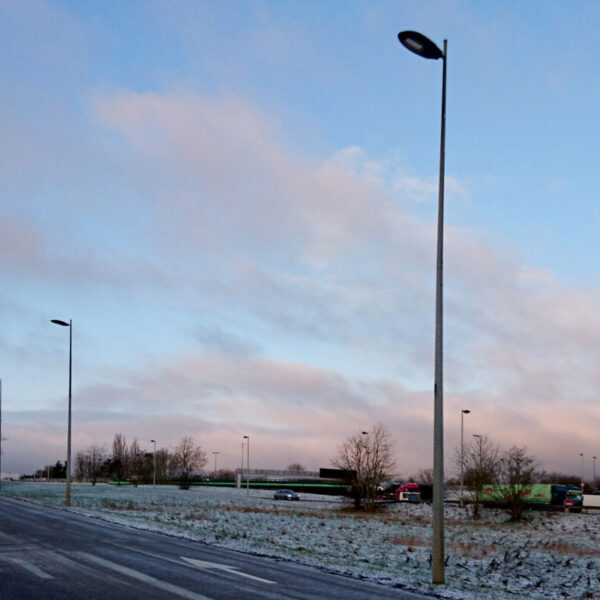

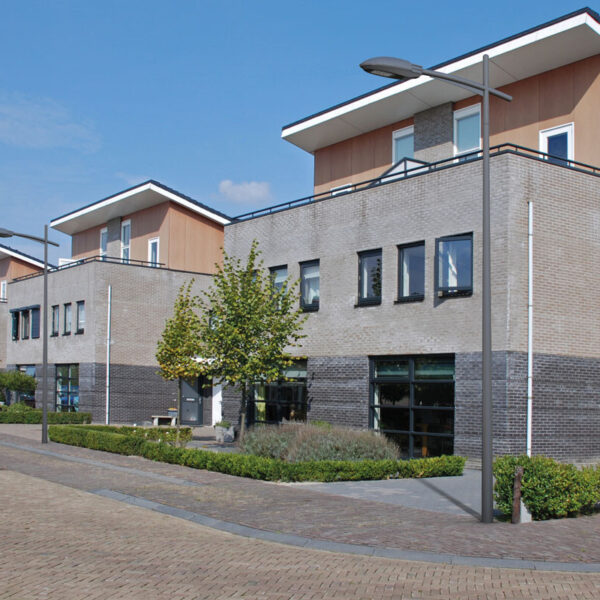

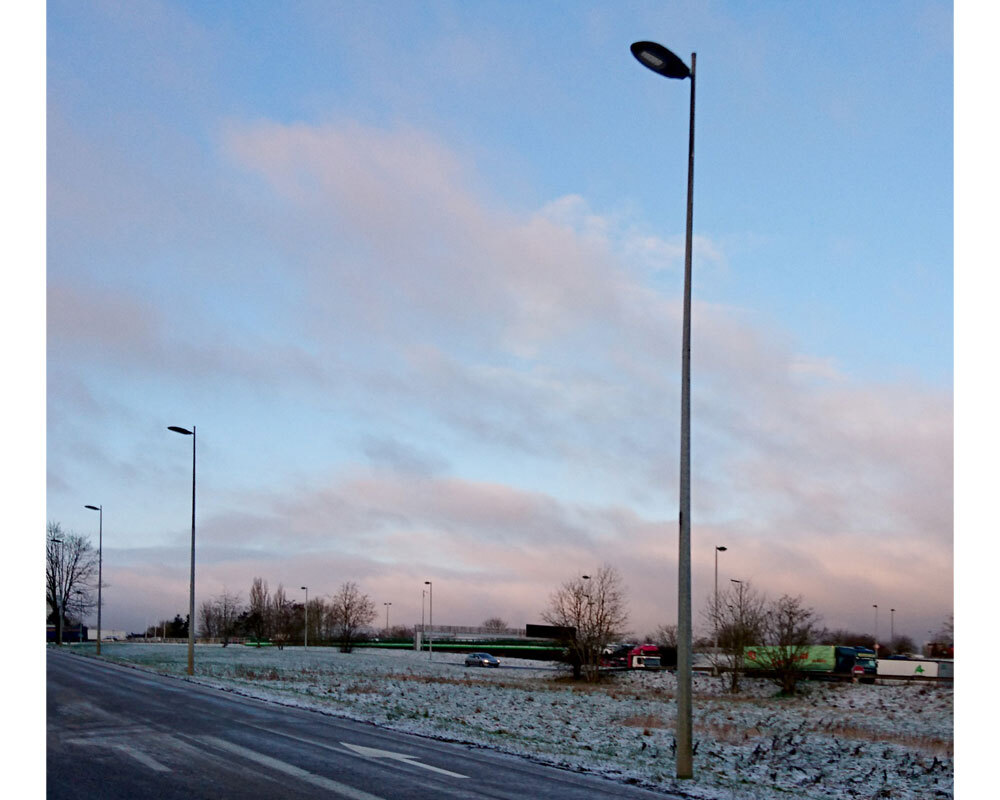

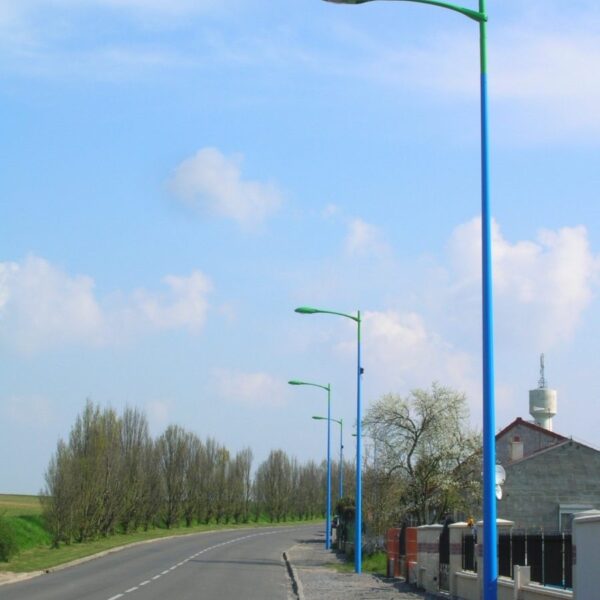

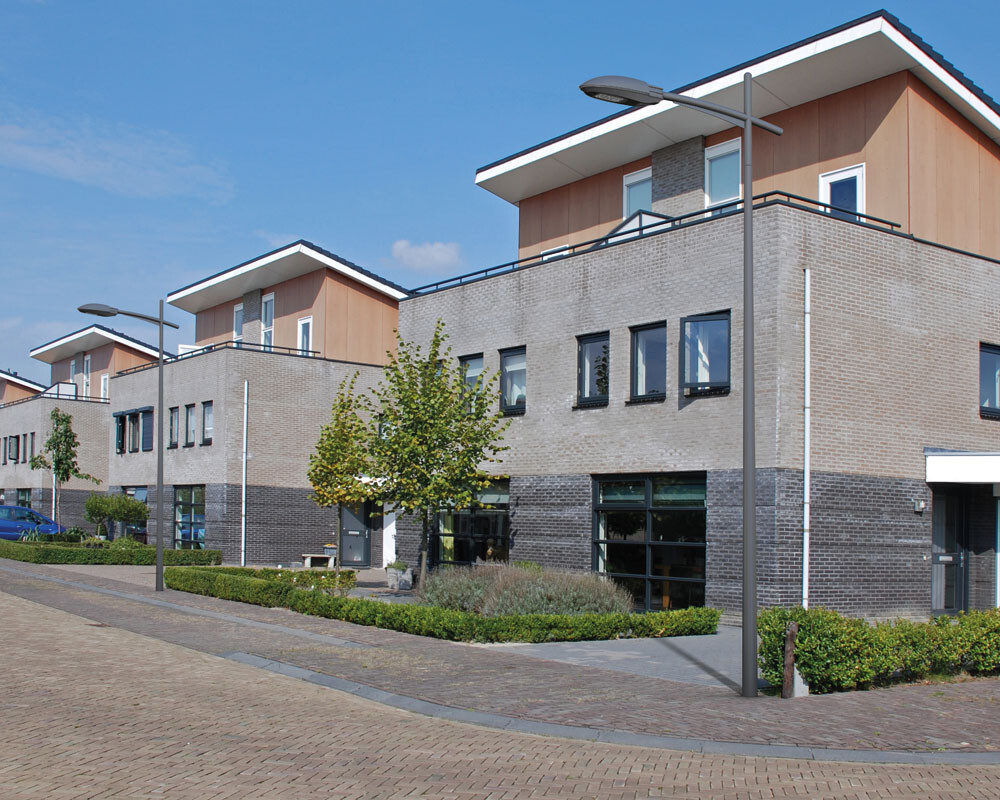

APPLICATIONS

Cycle paths

Footpaths

Residential streets

Main roads

Residence areas

APPLICATIONS

• Mounting: top and side entry
• Recommended heights: 4 to 10 m
• Urban routes, pedestrian walkways, cycle paths, squares, parks and pedestrian areas

DESCRIPTION

• Luminaire available in 2 sizes: Clip 28 and Clip 34
• Injection die-cast aluminium body
• Polyester powder coating, any colour available
• IP 66
• IK 07
• Luminaire opens without tools
• Class I or II
• TABLED 2 module with a TABLENS mono lens in PMMA, IK 07
• Colour temperature: 4000 K and 3000 K

RETROFIT

• The TABLED 2 module can be used to equip Clip luminaires that were initially equipped with discharge lamps.

CITIZEN REFERENCE POINTS

• Materials used:
- Clip 28: Aluminium 86%, Steel 7%, Other 4%, Plastic 3%
- Clip 34: Aluminium 87%, Steel 6%, Other 4%, Plastic 3%

• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded pneumatic silicone gasket
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

Luminaire post top mounted on pole Ø 60 mm and 76 mm Luminaire tilted from 0 to 15° by 5° steps
Luminaire lateral mounted on bracket Ø 42, 49 and 60 mm

DIMENSIONS

CLIP 28:
Length: 650mm Width: 341mm Height: 185mm
Weight: 7,4kg
Scx: 0,05m2

CLIP 34:
Length: 803mm Width: 381mm Height: 211mm
Weight: 14kg
Scx: 0,07m2
