BUZZ

design by Eclatec

BUZZ is the new language of lighting.

Exclusively accepting LED sources and thus making the most of modern technologies. Its shape communicates both a discrete modern simplicity.When night falls, its efficiency is fully expressed, strong with the successful combination of current concerns (energy economy, nuisance reduction, including rear lighting).

BUZZ, a luminaire that gets talked about...

BUZZ is equipped with ZEDLED C modules (multiple colour temperatures, multiple distributions).

APPLICATIONS

Icon cycle-paths

Cycle paths

Icon Footpaths

Footpaths

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top

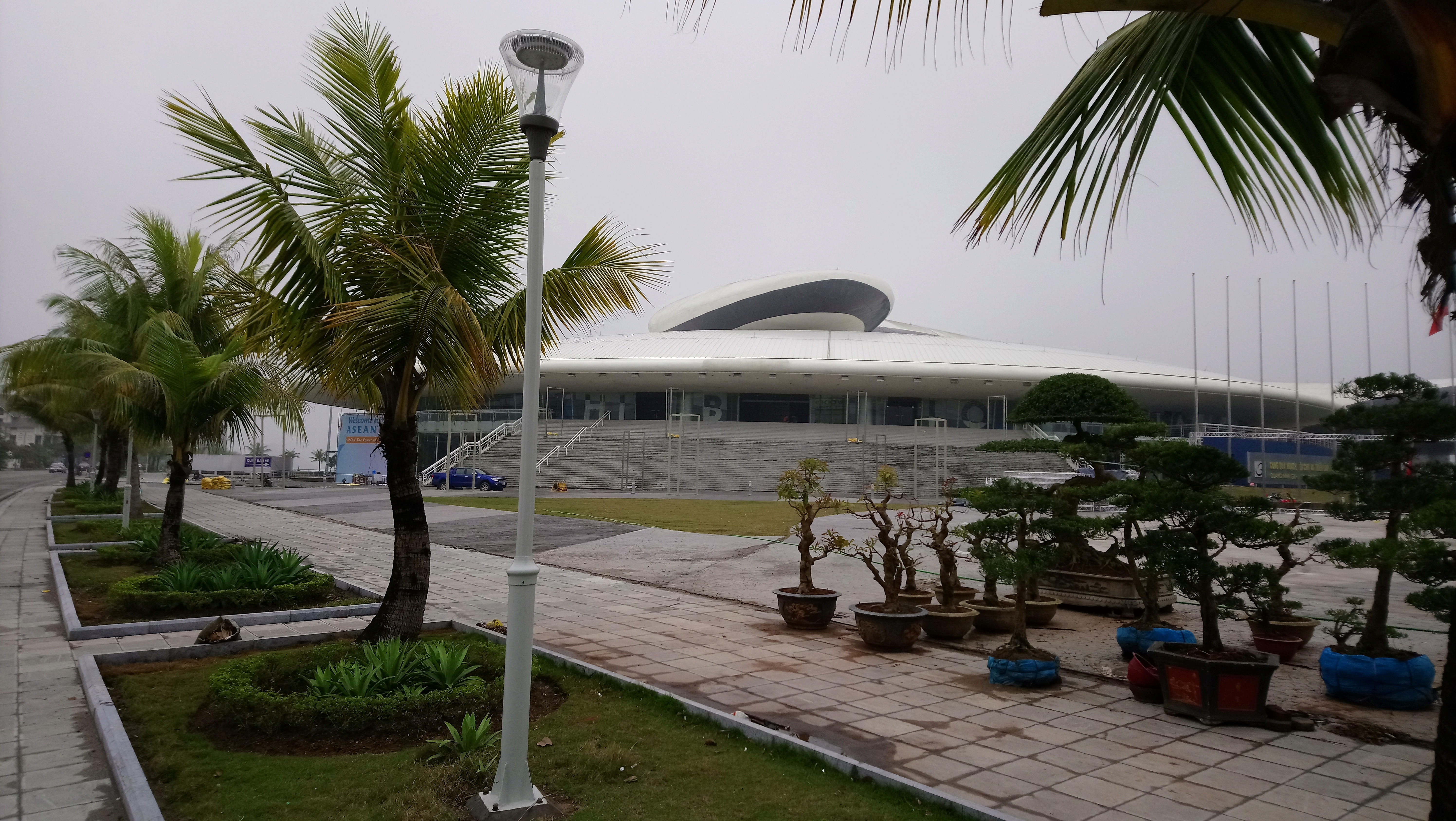

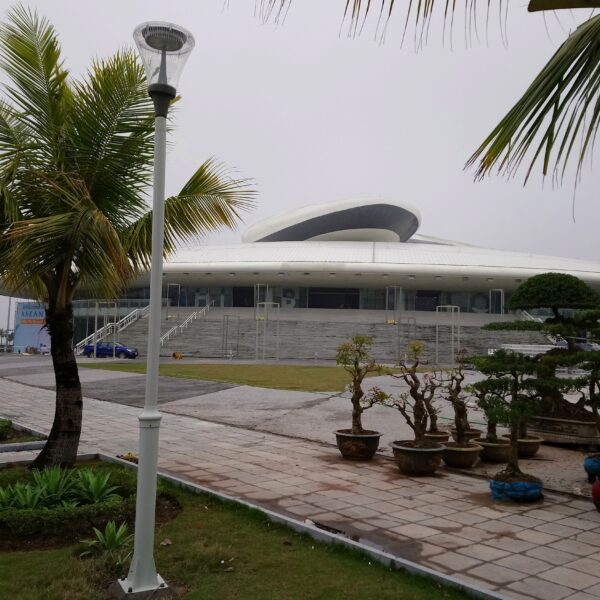

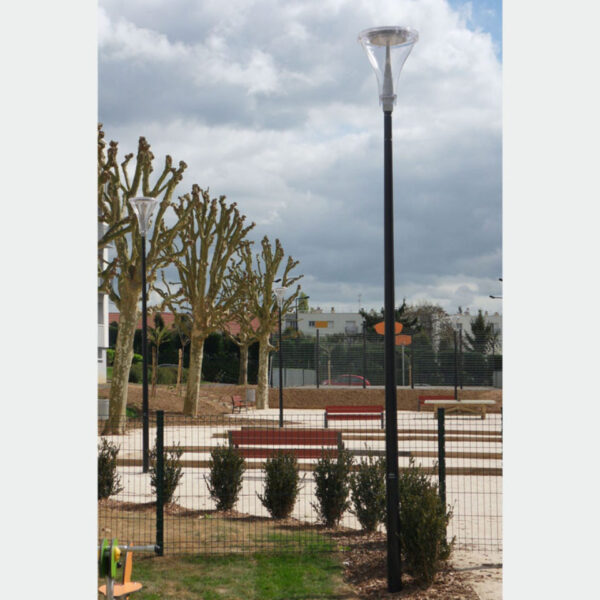

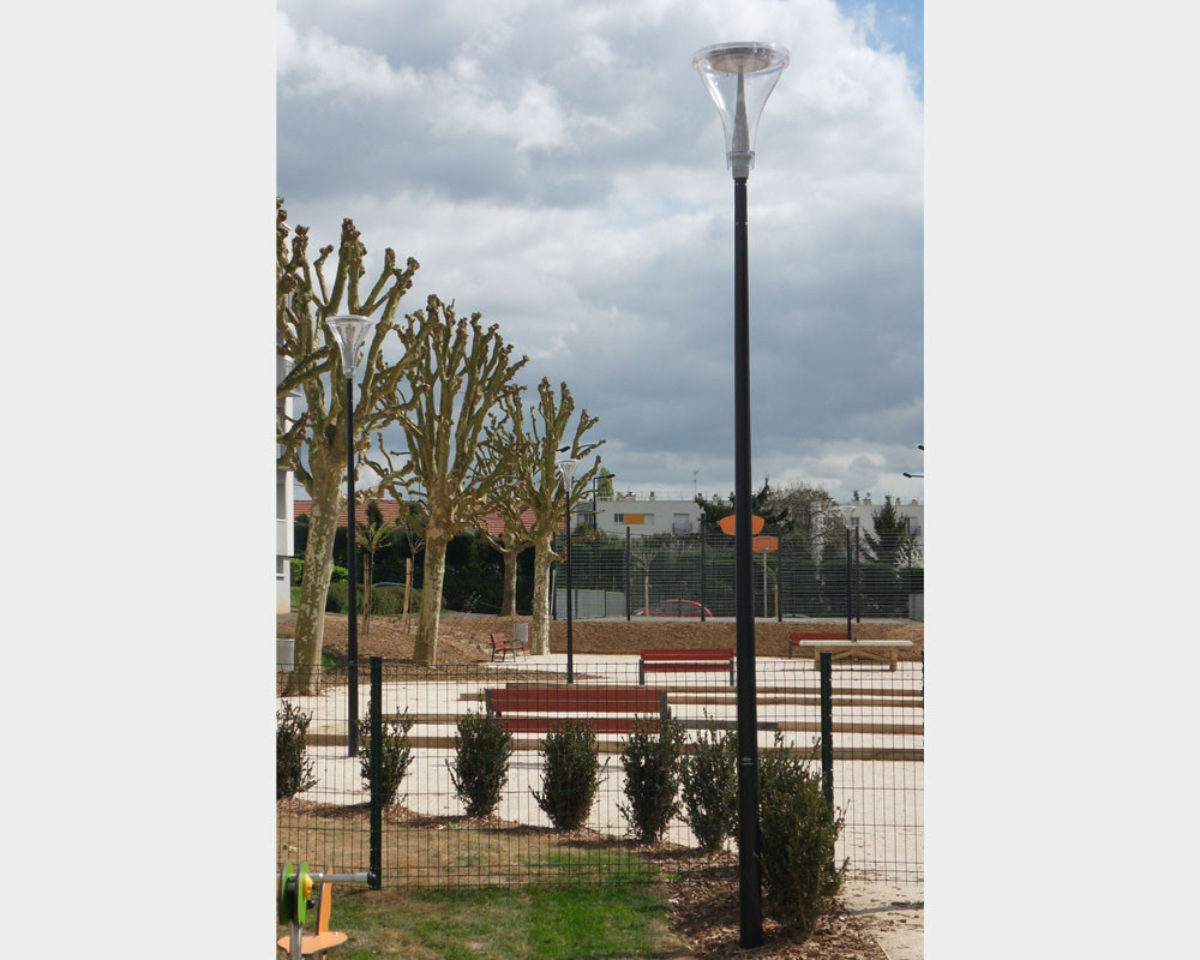

• Carparks, parks and gardens, pedestrian paths, cycle paths.
• Recommended heights: 3,5 to 5 m

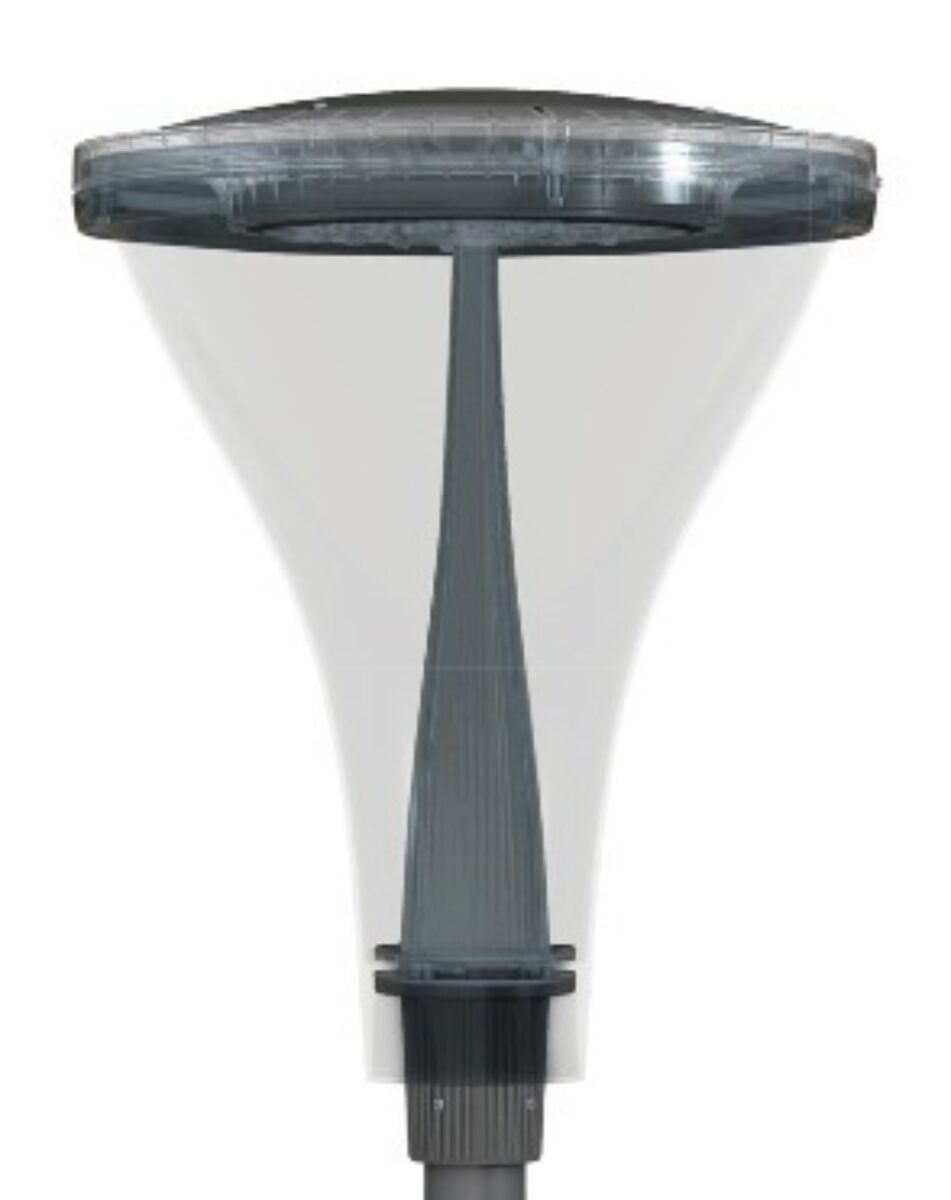

DESCRIPTION

  • Injected die cast aluminium bottom and canopy
  • Clear (standard) or grey (option) frame, in polycarbonate
  • Two polycarbonate bowls: deep clear, deep structured
  • Polycarbonate grey structural support stem
  • Polyester powder coating 2150 sanded grey, RAL and other colours on the base and canopy are optional
  • IP 66
  • IK 10
  • Class I or II
  • Luminaire pre-wired in the factory (6 m)
  • ZEDLED C module with ORALENS
  • Colour temperature: 4000 K and 3000 K

CITIZEN REFERENCE POINTS

• Materials used:
- Plastic 51%, Aluminium 37%, Steel 10%, Other 2%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket on the base, canopy and lower part
• Cable gland with anchoring device
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Post-top fastening on pole Ø 60/62 mm, with 4 screws
• For pole Ø 76 mm top, optional spigot C

DIMENSIONS

Ø: 481mm Height:865mm
Weight: 8kg
Scx: 0,15m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
