ALOA

design by J.M. Wilmotte

ALOA brings organic goodness to the city centre; its transparent lightness draws its inspiration from tropical plants with their blooms open wide.

When night comes, this sheet of light expands its protective veil and no passer-by escapes its enveloping ambience.

APPLICATIONS

Icon Residential streets

Residential streets

Icon Residence areas

Residence areas

Icon Parking lots

Parking lots

APPLICATIONS

APPLICATIONS

• Mounting: top or bitop, wall-mounted bracket, pathway bracket
• Urban routes, pedestrian walkways, cycle paths, squares, parks and pedestrian areas.
• Recommended heights: 4 to 6 m

DESCRIPTION

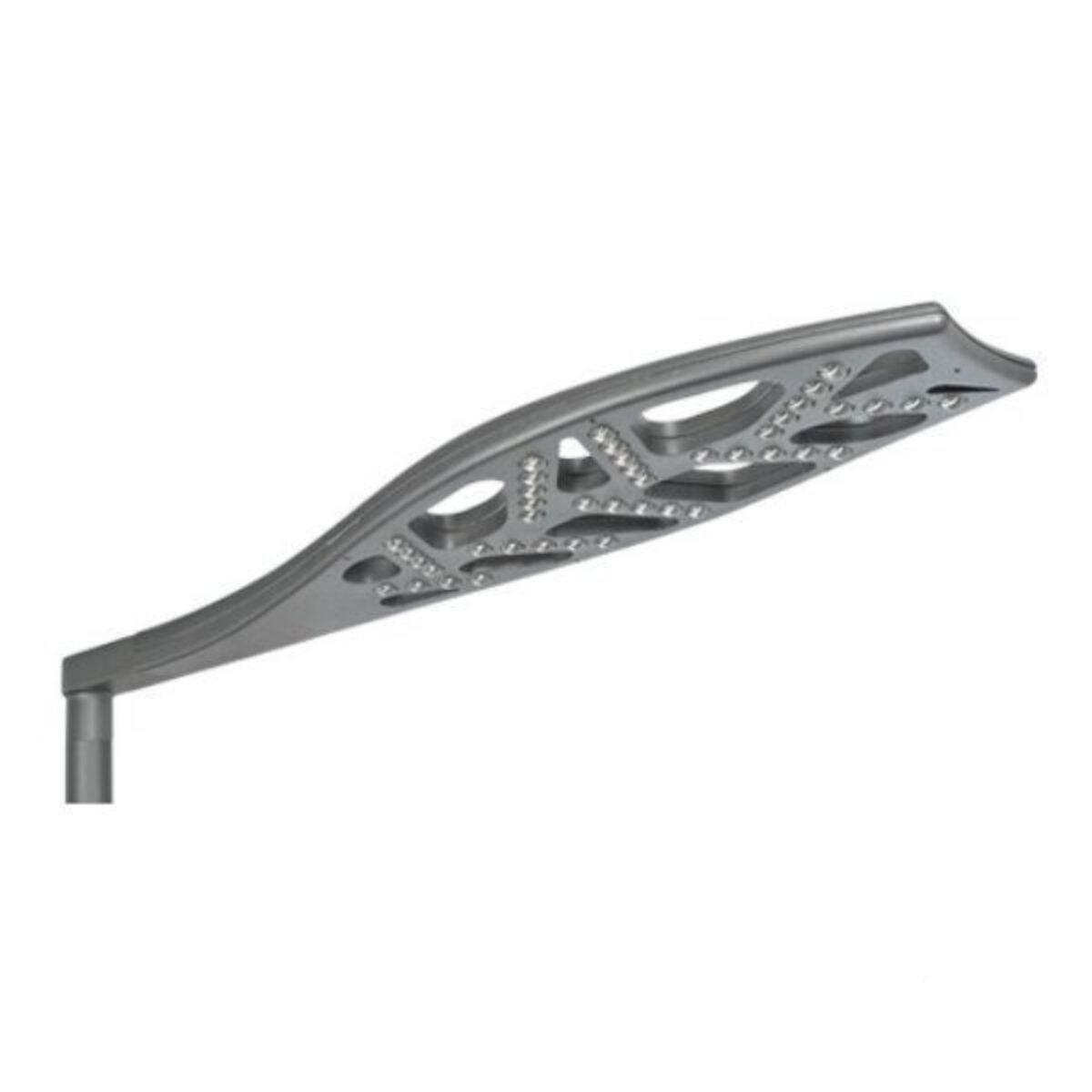

• Die-cast aluminium body with lattice shape
• Polyester powder coating, any colour available
• IP 66
• IK 08
• Class I or II
• Luminaire pre-wired in the factory (6 m)
• 9 watertight ALOA modules fitted with a specific mono lens
• Colour temperature: 3000 K or 4000 K

CITIZEN REFERENCE POINTS

• Materials used:
Aluminium 84%, Other 7%, Steel 6%, Plastic 3%
• Complies with the RoHS directive
• High recyclability rate

WATERPROOFING

• IP 66 waterproofing in accordance with the standard EN 60 529
• Extruded silicone gasket
• Breathing system with activated carbon filter

MECHANICAL INTERFACES

• Top or Bitop
• Wall-mounted bracket (maximum 350 mA)
• Pathway bracket
• Steel pole Ø 60/62 mm

DIMENSIONS

Length: 1258mm Width: 364mm Height:208mm
Weight: 8,1kg
Scx: 0,05m2

CONNECTIVITY

• 0-10V
• DALI
• SR+Zhaga (D4I)
• Bluetooth
